LX - Loudspeaker Store

LXmini  --  LXmini+2  --  LXstudio  --  LX521.4





LXstudio

The LXstudio was designed to render sound recordings with clarity, neutrality and with detailed, 3D-like imaging, when properly set up. The speakers will reveal what is in a recording, but never add unpleasantness.

The LXstudio is 3-way loudspeaker that combines the LXmini with two LXsub4 dipole subwoofers, which have 10 dB higher output capability than can be obtained from the LXmini+2 configuration. A 10 dB increase is perceptually significant due to the ear's very nonlinear hearing sensitivity to the lowest frequencies. With an LR2 crossover at a low 60 Hz the woofers can be placed against the side walls of a room and the LXmini used as near-field monitors. Path length differences to the listener can be compensated for in the DSP unit. Dipole woofers have the advantage of less room mode excitation, which matters even in a highly damped recording/mixing studio.

The LXstudio can be built DIY from a Kit for around $2400, including a miniDSP 4x10HD equalizer/crossover. Additionally, 6 power amplifiers in the 50 W to 200 W range are needed. The frequency range extends from 25 Hz to 20 kHz. The horizontal and vertical off-axis frequency response, which is heard via the room, is spectrally neutral. Thus, listening off-axis merely changes the viewing angle to the phantom acoustic scene rendered by the seemingly absent loudspeakers.

The LXstudio was designed for a mixing studio application (symphonic music), where the conventional large box monitor loudspeakers gave uneven response, especially at low frequencies, despite the studio being highly damped and relatively large.

The LXstudio performs sonically like the LX521.4, and comes close to the full-range dipole's ultimate refinement of sound presentation.  ----  SL - 8/16







LXstudio Construction Plans/License
and ATI Amplifiers from

www.linkwitzlab.com

LXstudio Construction Plans/License .... $160
Plans/License is also required to purchase kits and assembled systems.

AT6012 Power Amplifiers (12x 60W/ch) .... $1950
AT1806
Power Amplifier (6x 180W/ch) .... $1850
AT526NC Power Amplifier (6x 200W/ch) .... $2895
AT528NC Power Amplifier (8x 200W/ch) .... $3495

Alternatively provide six power amplifiers (6x 50W/ch minimum & identical voltage gain for each channel, <0.03% dist.)
The Emotiva A-800 8-channel amplifier, could be a low cost, satisfactory performance solution for LXmini, or LXmini+2, or LXstudio applications.

CA residents add 9% Sales Tax

Take a look at a Digital Stereo Sound System example
Check out your system and hearing with a Phantom Image Test







LXstudio DSP Module from www.miniDSP.com

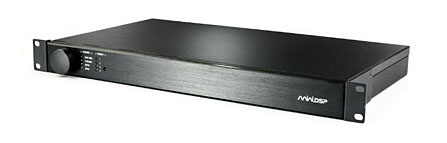

miniDSP 4x10 HD .... $499
miniDSP 4x10 plug-in / 96kHz processing .... $10
2-in analog, 2-in digital, 8-out analog, 2V, local knob and remote volume








LXstudio Kit from www.madisound.com

LXstudio Kit .... $2118

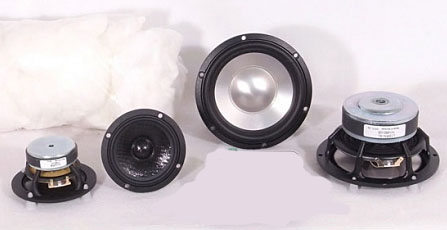

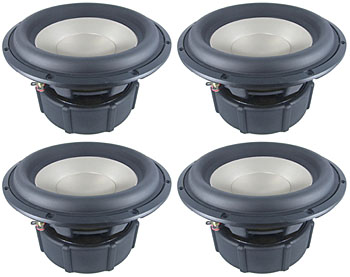

The LXstudio Kit includes: LXmini 2-Woofers, 2-Fullrange drivers, miniDSP 4x10HD, LXmini wood parts and related items, stuffing, but no pipes and rubber couplers.
LXsub 4-Woofers, two V-frame cabinet wood parts







Contact: Adam Johnson

Plans/License is required to purchase kits and assembled systems.  | Terms & Conditions |







LXstudio Kit from www.LINKWITZ.store

LXstudio Kit
  • 8 SEAS drivers
  • Precision cut tubes, predrilled
  • CNCed HDF parts in dull black (high density wooden material, without the downsides of MDF like soaking edges, etc)
  • Screwless FR driver mount, no visible screws on upper tube
  • Capless lower tube mount
  • Screwless upper tube support
  • 2 Speakon 4-way plugs “1-click”
  • Internal cables
  • Rubber couplers
  • Damping material
  • CNC precision milled parts from best quality birch plywood
  • V-frame woofers with hidden cable canals in sidepanels
  • V-frame woofer with 45deg front joints
  • dowel joints avoid visible screws
  • Internal cables

Kit does not contain: electronic crossover/amp/amp-cables, paint, glue, license/plans
Upgrades available on request: transparent tubes, lacquered tubes, etc.

Worldwide shipping: LXstudio kit incl drivers EU 96€ / US&CAN 319€ / World 399€







------------------------------------------------------------------

LXmini to LXstudio Upgrade Kit
2x V-frame Woofer flat-pack and 4 SEAS woofer drivers

Worldwide Shipping of upgrade package in three parcels: ca. EU 74€ / US&CAN 239€ / world 299€, Insurance 30€.

Contact: Dr. Frank Brenner, info@LINKWITZ.store

Plans/License is required to purchase kits and assembled systems.  | Terms & Conditions |
Send proof of Plans/License ownership to <plans@LINKWITZ.store>







LXstudio Electronics from www.LINKWITZ.store



DSP / Pre-amplifier / Power-amplifiers





PowerBox 4180 .... €1890
Includes high-end DSP, preamp and 4 power amps from Hypex.
PowerBox 4180 drives the LXmini part and delivers the processed woofer signal for an external woofer amplifier:

or

PowerBox 6pro NCore .... €2490 "All in one" solution.

  • The PowerBox 6 pro NCore is a preamp with volume control, a 6-ch DSP with 6ch-DAC, feeding 6 NCore amplification channel (power amplifier) in one slim but massive powder-coated aluminum top with brushed stainless steel front plate.
  • Digital inputs: RCA, optical, XLR, AES/EBU, USB
  • Analogue inputs: Two pairs of true balanced analogue inputs (RCA-XLR converter cables available)
  • Optimized, fully balanced internal system layout, allowing shortest signal traces, minimizing losses and artifacts.
  • Filter programming for LXMINI; LXmini+2 or LXstudio, LX521.4: Includes remote volume control.
  • An additional PowerBox 6pro NCore (Follower, €2490 ) allows upgrade to LX521.4 operation.
  • See Burning Amp 2016 and Open House 2017 and PB 6pro PDF

or

NEW

ASP-based, fully integrated  PowerBox 6pro precision analog

ASP and 6x NCore amplifier channels, rumble filter. For LXmini, LXmini+2, LXstudio





2x Speaker Y-cable .... €178
“1-click” SpeakOn, Y-cable between PowerBox 4180 and LXminis, 2x 2,5m
“1-click” SpeakOn, Y-cable between PowerBox 6pro NCore and Woofers, 2x 2,5m
(4x 5,0m .... €218)

Worldwide shipping: e.g. EU 25€ / US&CAN 79€ / World 85€, plus 15€ insurance

EU residents add 19% VAT

  • The PowerBox is a preamp with volume control, a 6-ch DSP with 6ch-DAC, feeding a
    4-channel (PowerBox4180) or 6
    amplifier
    in one slim but massive powder-coated aluminum top with brushed stainless steel front plate.
  • Digital inputs: RCA, optical, XLR, AES/EBU, USB
  • Analogue inputs: Two pairs of true balanced analogue inputs (RCA-XLR converter cables available)
  • Optimized, fully balanced internal system layout, allowing shortest signal traces, minimizing losses and artifacts.

Contact: Dr. Frank Brenner, info@LINKWITZ.store

Plans/License is required to purchase kits and assembled systems.  | Terms & Conditions |
Send proof of Plans/License ownership to <plans@LINKWITZ.store>







LXstudio Turnkey System from www.LINKWITZ.store



LXstudio System

Loudspeakers / DSP / Pre-amplifier / 6 Power-amplifiers







The System consists of:

2x LXmini Loudspeakers and 2x LXsub4 Woofers

  • Dull black lacquered HDF parts and tubes, alternatively with transparent acrylic glass tubes.
  • Individual lacquering schemes on request.
  • V-

1x PowerBox 6pro NCore ....  "All in one" solution.

  • The PowerBox 6 pro NCore is a preamp with volume control, a 6-ch DSP with 6ch-DAC, feeding 6 NCore amplification channel (power amplifier) in one slim but massive powder-coated aluminum top with brushed stainless steel front plate.
  • Digital inputs: RCA, optical, XLR, AES/EBU, USB
  • Analogue inputs: Two pairs of true balanced analogue inputs (RCA-XLR converter cables available)
  • Optimized, fully balanced internal system layout, allowing shortest signal traces, minimizing losses and artifacts.
  • Filter programming for LXMINI; LXmini+2 or LXstudio, LX521.4: Includes remote volume control.
  • An additional PowerBox 6pro NCore (Follower, €2490 ) allows upgrade to LX521.4 operation.
  • See Burning Amp 2016 and Open House 2017 and PB 6pro PDF

Worldwide shipping in four parcels: e.g. EU 96€ / US&CAN 319€ / world 399€ / Insurance 45€
Due to weight restrictions per parcel, upper woofer drivers ship in a separate parcel and must be inserted by customer with 8 bolts
& nuts.
Includes License/plan fee to www.linkwitzlab.com
EU residents add 19% VAT



Contact: Dr. Frank Brenner, info@LINKWITZ.store

Plans/License is required to purchase kits and assembled systems.  | Terms & Conditions |
Send proof of Plans/License ownership to <plans@LINKWITZ.store>, if already bought.
