The Magic in 2-Channel Sound Reproduction
Why is it so rarely heard?

Hearing, finding the direction, distance and significance of a source of sound in various acoustic environments, is a survival mechanism in the evolution of living organisms. Hearing two strongly correlated sources of sound, either from earphones or two loudspeakers, is an unnatural phenomenon, from which the ear-brain apparatus is asked to draw an illusion of reality. For the illusion to happen convincingly misleading cues must be eliminated from the sound presentation. In the case of earphone presentation, which typically suffers from a high degree of distance distortion, i.e. distance foreshortening, the ear signals must change with head movement to externalize the illusion. In the case of loudspeaker presentation there is already the distance between listener and speakers, which typically is perceived as the minimum distance to the illusionary aural scene or phantom scene. But that scene is usually hard bounded by the speakers, which are recognized by the brain and one or the other speaker is preferred as the source, when the listener moves a short distance away laterally from the "sweet spot".

In a reverberant room, where the listener not only hears the direct sound but also the reflected sound, i.e. the off-axis radiated sound, the ear-brain perceptual apparatus must be allowed to withdraw attention from the room and speakers and focus attention upon the direct sound to create a convincing illusion of the reproduced acoustic event. For this to happen misleading perceptual cues must be eliminated. The speakers must be placed so that reflections are delayed relative to the direct sound. The speakers must be free from spurious resonant radiation and their off-axis radiation must follow their on-axis frequency response for the reverberant sound to be neutral. The polar radiation pattern must be essentially either omni-directional, cardioid or dipolar, aiming for constant directivity. The speakers must be acoustically small, yet capable of realistic volume levels at low non-linear distortion.

Two prototype speakers and the evolution of their radiation pattern design will be discussed: a full-range, acoustically small dipole and a hybrid, omni-cardioid-dipole design. Either speaker is capable of disappearing from perception and rendering an aural scene in a reverberant room that is like a magic act.

I claim that few stereo listeners, audiophiles, or audio professionals have heard what stereo is truly capable of because loudspeakers for domestic use are generally not designed with a reverberant playback space in mind. Furthermore, phantom sources, which are key elements of stereo reproduction, are unnatural phenomena; we are programmed by evolution to detect direction and distance of real sources of sound in a multitude of reverberant environments¹. Stereo sound reproduction in a reverberant room must therefore be treated like the creation of a magic trick for the ears - a trick in which the listener withdraws attention from the loudspeakers and the room. What remains to enjoy is the phantom auditory scene.

The room, loudspeakers, and recording participate in the creation of the illusion. Most important are the loudspeaker's polar pattern and the placement of the speakers in the room. And though the room is often blamed for resulting poor stereo performance, it is mostly the loudspeaker and the source that illuminates the room with sound.

1.1 Hearing
Hearing has evolved as an effective survival mechanism for detecting direction, distance, and meaning of a source of sound in an environment where there may be multiple sources of sound and reflections. Hearing still operates like that today when we automatically turn our head towards a surprising or unfamiliar sound and figure out what is causing it and how far away it is. Having identified the source we respond either by running, watching out, ignoring it or being annoyed.

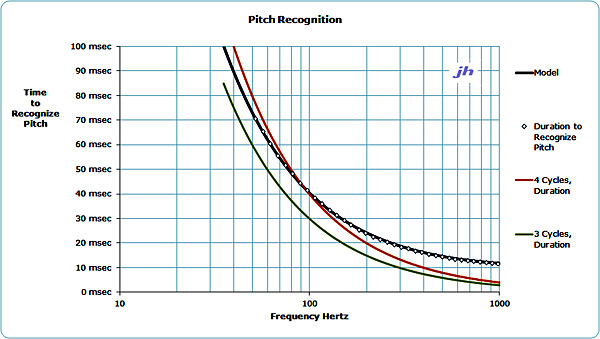

In our brain, we carry a vast catalog of familiar sounds. Voices of different individuals are recognized almost immediately even over a phone connection of poor quality. When we hear a voice coming from somewhere, we usually know whether it is from a loudspeaker or a real person. Why is that? Every loudspeaker has a sonic signature, a radiation pattern², and a power response which defines how it interacts with the space around it. A person's voice has a sonic signature and, unless a loudspeaker is build to mimic that signature, it is easy to distinguish a live person from a loudspeaker reproduction, especially in a reverberant environment. Musical instruments, of course, also have their sonic signature³ be it a violin, cello, clarinet, flute, piano, etc. Since it is impossible to build a loudspeaker that can assume all those signatures, the optimum solution will be a loudspeaker which does not add its own signature to the reproduction of a recording, i.e. a loudspeaker with a neutral signature when radiating into 4ð reverberant space.

1.2 Anechoic Stereo Reproduction
It is instructive to first look at stereo reproduction under anechoic conditions; hearing under those conditions is not a natural experience, but it shows us how the ear/brain apparatus copes with such situations. We will start by looking at both headphones and loudspeakers.

1.2.1 Headphone Stereo
Headphones render sound under almost anechoic conditions. The cavities between eardrum and headphone diaphragm, whether from circum-aural, supra-aural or intra-aural phones, often color the sound. Most importantly, perceived distances to the auditory scene are foreshortened, which is an unnatural phenomenon. It is easy to make binaural recordings where a person whispers into your ears, but all sources of sound are closer than they were in reality. Typically, sounds in the frontal direction are perceived as originating inside one's head. Figure 1. Much engineering effort is spent these days on embedding Head Related Transfer Functions into the signal transmission path in order to present sound sources in 3D-space. But HRTFs are highly individualistic. Thus the results of such efforts are very limited unless the HRTFs are made to change with head movement.

With head tracking, sound sources can be placed at any distance from and around the listener. I am convinced from personal experience that hearing a change in HRTF with head movement is much more important than the individualized correctness of the HRTF. A headphone system with head tracking is clearly capable of the magic I am talking about as long as one can be comfortable with transducers occluding the ears and placing the listener into a virtual reality space.

1.2.2 Loudspeaker Stereo
Anechoic, reflection free spaces are essential for loudspeaker measurement and design; they are also essential to studying directional hearing effects. For instance, assume that two identical loudspeakers and a listener are set up in equilateral triangle fashion in an anechoic chamber. Figure 2. Identical signals are fed to each loudspeaker. If the listener's head had been blocked - i.e. not allowed to move - and there were no visual cues as to the loudspeaker location, then the listener hears a phantom source inside his head between the ears (a), just as with headphones.

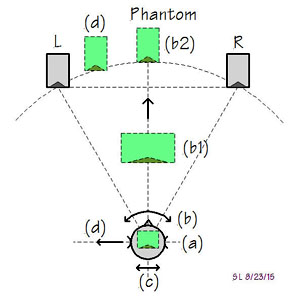

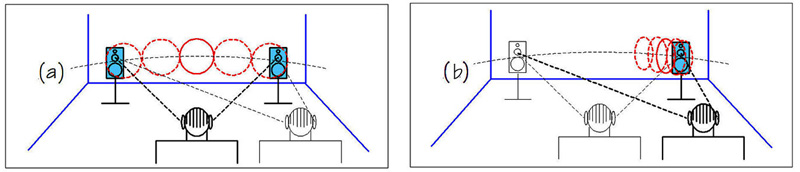

If the listener is allowed to turn his head, he then perceives the phantom source in front of him (b2) at approximately the distance to the invisible loudspeakers. For highly directive speakers the center phantom may actually appear in front of the speakers (b1). If the source signal is noise and the listener moves a small distance laterally, then a change in tonality is heard due to changing interference of left and right loudspeaker signals at each ear (c). For greater lateral shifts (d) the signal collapses into the nearest loudspeaker and head turning confirms the location of the physical source of sound.

In the recording/mixing process,^4,5,6 monaural sources are level panned to locations between the speakers and amplitude and phase differences between the outputs from one or more directional microphone pairs are used to render an acoustic scene between loudspeakers. An off-center phantom source, such as example (d) for a centered listener at (a), can be created by a larger amplitude signal from the left than the right loudspeaker. Below 800 Hz the superimposed loudspeaker signals at left and right ears are converted into timing differences^7,8,9,10 between the ears (ITD) as if they were generated from a real source at location (d). Higher frequency content above 2 kHz with larger amplitude from left than right loudspeaker mimics the head shading (IID) effect and stabilizes the off-center phantom. But transient signals can quickly lead to identification of left or right speaker as the real source. It is a task for the mixing engineer to distribute a phantom scene between the loudspeakers. An acoustically dead room is generally preferred as work environment because it allows him to hear more clearly while making decisions. But it is an artificial environment.

2.1 Room Reflections
While anechoic conditions are useful for studying directional hearing, one must be careful to translate the findings directly to situations where multiple reflections of a signal occur. Again, this is a situation that is predominant in natural hearing and where evolution has optimized the signal processing between the ears for survival purposes. For example, it is important not to be distracted by reflections in finding the direction from which a sound is coming. Psychoacoustic research has shown that a first reflection^11, which occurs shortly after the direct signal (within <25ms), must be stronger than the direct signal before it shifts the direction of the first arriving signal. A second¹² reflection from a different direction has to be even stronger than the first reflection to shift direction. But later reflections (>30 ms) draw increasingly more attention unless their amplitude decreases with longer delays. This makes sense because late reflections could actually be coming from a second source.

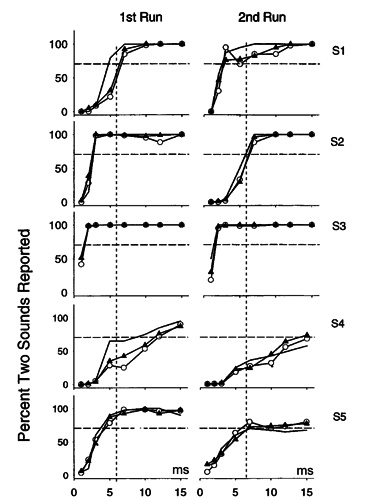

A loudspeaker in a room produces a large number of reflections¹³ and perceptual issues become difficult to study in detail because of the large number of signal streams that arrive at each ear of a listener. Figure 3. Matters become even more complicated when the loudspeaker changes polar characteristics with emitted frequency; speaker L is typical for the vast majority of box loudspeakers. These speakers radiate omni-directional at low frequencies and become increasingly more forward directional with higher frequencies while maintaining a flat on-axis response. Consequently such box loudspeaker illuminates the room quite differently from a constant directivity dipole - for example speaker R. The dipole's reflections produce different superimposed sound streams at the ears of a listener even when they arrive from the same directions as those of a box loudspeaker in the dipole's location.

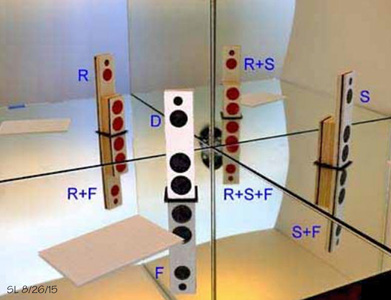

Sound from a loudspeaker near the corner of floor and two walls produces at least 7 reflections¹³. Figure 4. Three of these are first order reflections, three are second order and one is of third order. In reality there would also be ceiling reflections and reflections from a speaker in the left room corner. The direct and reflected signals bounce around in the room building up the sound pressure level (SPL) of the reverberant field and reaching a constant level nearly everywhere in the room if the source signal is sustained in SPL.

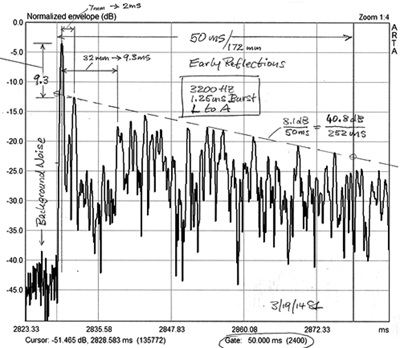

Figure 5 and Figure 6 are real world examples giving an indication of the complexities with which the ear-brain hearing apparatus has to deal in order to find the direction and distance of the physical source. Obviously, fewer or weaker reflections make the task easier. With stereo and two loudspeakers we are not interested in the physical sources but the phantom sources and the auditory scene created by the direct loudspeaker signals. So the question becomes how to keep the reflections from becoming a distraction and how to move the room beyond the listener's acoustic horizon of attention.

2.2 Room Resonance Modes

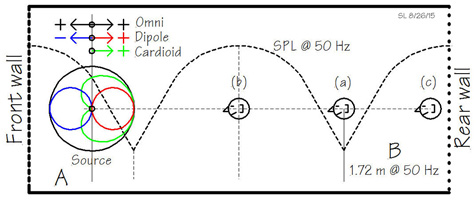

Domestic listening rooms are acoustically small at low frequencies, where their largest dimensions are less than half of a wavelength. Sustained sounds will set up standing waves^14,15 causing uneven distribution of SPL in the room. Figure 7. The position of a loudspeaker in the room, its low frequency radiation pattern, and the sound absorptive characteristics determine to what degree these resonant modes are excited. Whether the source radiates omni-directional, like a dipole or a cardioid, the longitudinal mode in Figure 7 will be set up. Only if the whole rear wall is totally absorptive or behaves like an open window will there be no standing wave. This is because there is no reflection back to the front wall. Standing waves are often problematic, particularly for a loudspeaker, which radiates more energy at low frequencies into the room than at higher frequencies like box speaker L in Figure 3. A loudspeaker which is directional even at low frequencies - like the dipole R in Figure 3 or a cardioid loudspeaker - changes the coupling to offending modes by turning it.

Furthermore if the loudspeaker maintains the same polar pattern over the whole frequency range, then energy distribution from low to high frequencies in the room is only a function of the room's absorptive characteristics. Thus, bass from dipole loudspeakers is reproduced with greater articulation¹⁶ and more evenness at different listening room locations than from box speakers. By articulation I mean that the envelope modulation of a bass signal is better preserved for different locations in the room. Any ambiance from the recording venue will be heard more clearly because the listening room is illuminated neutrally.

2.3 Reverberated Sound Field
If domestic rooms were simple rectangular boxes with known sound absorption coefficients for their boundary surfaces and without furniture in them, then it would be possible to predict¹⁴ the large number of modes that could be excited by a loudspeaker. Table 1. The number of modes 'N' increases with frequency as does the number of reflections since it takes two or more boundaries to set up a mode. In the example a) of a room with proportions deemed to have acceptable maxima and minima mode spatial distribution b), there could be up to 55 modes excited by the loudspeaker below fm = 150 Hz depending upon its placement in the room and its radiation pattern below 'fm', c). In general, as frequency increases the average frequency separation of modes 'df' decreases, being down to 1.6 Hz at 'fm'. Each mode has a 3 dB bandwidth 'bw' and corresponding reverberation time 'T60', which is determined by the wall absorption properties 'a' at the frequency of excitation, Table 1 d). A wall or surface absorption coefficient of 25% means that 1/4th of the room's surface area 'S' acts like an open window for sound to escape. That is a large equivalent area. It would have to be increased to 45% if a reverberation time of 250 ms were targeted, which is only practically achieved for this size room by the addition of bulk absorbers and resonant absorbers. Such short reverberation times are useful for mixing studios with conventional box type monitors. But for domestic listening and the type of controlled directivity loudspeakers that I discuss later¹⁸, they are not desirable. I have found a normally furnished room with diffusive and absorptive elements and a reverberation time around 450 ms to be optimal.

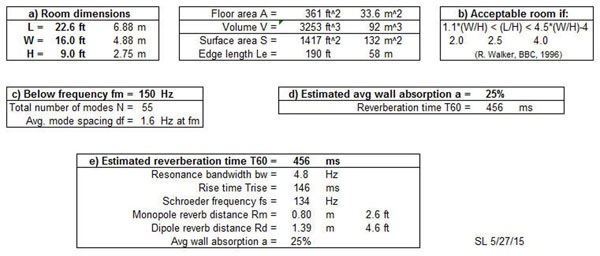

Assuming a 456 ms reverberation time the mode bandwidth 'bw' becomes 4.8 Hz, Table 1e). The bandwidth 'bw' is inverse proportional to 'T60' and is the same over the whole frequency range if the reverberation time is constant.

With increasing frequency the mode separation 'df' decreases; at the Schroeder frequency¹⁴ more than two modes fall within 'bw'. The Schroeder frequency roughly defines the boundary between the modal region below and the reverberant sound field above. For domestic size listening rooms 'fs' lies between 100 Hz for dead rooms and 200 Hz for fairly live rooms. The sound field above 'fs' takes on a uniform SPL distribution in the room for distances from the source, which are greater than the reverberation distance 'R'. Table 1 e). Direct and reverberant SPL are equal at 'R'. The reverberation distance¹⁸ is rather small but significant by indicating that a listener seated in the reverberant field would experience a higher direct-to-reverberant sound ratio (D/R) for the more directional source, i.e. 4.8 dB for the ratio of dipole 'Rd' compared to the monopole 'Rm'. In other words a dipole source in a room with 450 ms reverberation time is equivalent in terms of D/R to a monopole in a room with 150 ms reverberation time.

The modes below 'fs' and the reverberated sound field above 'fs' build up with Trise = 0.32 T60 when sustained acoustic energy is supplied to the room¹⁵. It should be noted that 'Trise' is large compared to the duration of high frequency transients, meaning how well transients are heard at different locations in the room depends primarily on the dispersion of the direct sound from the loudspeaker and its reflections.

3.1 Typical Stereo Reproduction
Domestic listening rooms come in all shapes and sizes and rarely follow the simple model in Table 1. Except for a few of the lowest order modes and primary reflection areas, it becomes exceedingly difficult to make predictions about any room's potential acoustic behavior. Reverberation time is best measured and gives a general description for different frequency bands. How useful that is depends upon the loudspeakers that will be installed. I will even claim that how the room responds to sound is much less of a problem than how the loudspeaker illuminates the room.

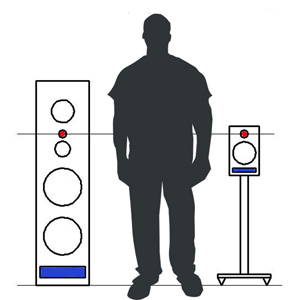

How a loudspeaker will illuminate the room can in most cases be predicted by visual inspection of its shape, its physical dimensions, driver sizes and layout, which all help determine acoustic dimensions and diffraction effects. The vast majority¹⁷ of loudspeakers are constructed as rectangular boxes of various sizes, with narrow and tall front baffles, vertically aligned drivers and a vent either in front or in back. The tweeter and the design axis are positioned at seated ear height. Figure 8. There are variations to the front baffle design with rounded edges, a narrower baffle for the tweeter or staggered baffles for "time alignment" of the drivers. The drivers themselves may be vertically aligned as T-W, T-M-W, M-T-M-W or various other configurations including coaxial T-M and W-W on opposing side panels. Regardless, all of these arrangements lead essentially to a horizontal polar pattern as for L in Figure 3 and to a vertical polar pattern that may exhibit lobing determined by the acoustic spacing of drivers and the crossover types used.

The 4ð or "power response" of such speakers always starts out as being omni-directional at low frequencies where its dimensions are acoustically small compared to the radiated wavelength. At the high end the power response ends up to be 10 dB to 15 dB down because any practical tweeter becomes acoustically large and radiates primarily in forward direction regardless of the baffle size. The smoothness with which the power response decreases from low to high frequency has been found to be a strong contributor to perceived sound quality under reverberant conditions. But many loudspeakers seem to have been designed primarily for a flat or slightly down-sloping on-axis response, and sometimes averaged over a specified listening window¹¹. Figure 9.

No wonder there is a generic loudspeaker sound. When two of such box loudspeakers are placed in a domestic listening room with all its variations or even when placed in an "acoustically designed" and treated room there emerges a fairly consistent pattern for rendering stereo recordings. Figure 10.

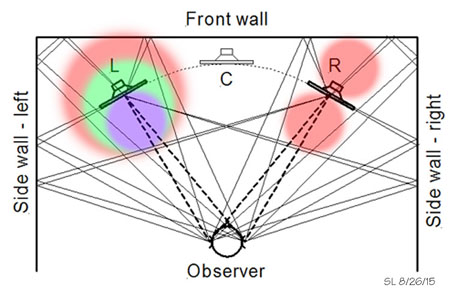

Assuming that the loudspeakers are set up symmetrical with respect to the side walls and not against the front wall and that the listener sits at the "sweet spot" - the apex of an equilateral triangle formed by speakers and listener - a phantom acoustic scene is perceived between the two loud speakers (a). The auditory scene (red) is created in the listener's mind based upon the direct sounds coming from the loudspeakers and the reflected and reverberated sounds in the room (blue). The more directional the speaker radiation the more spatially defined the phantom scene becomes horizontally. I call it 'headphones from a distance'. The loudspeakers are clearly perceived as hard boundaries of the scene. There is a distinct awareness of loudspeakers, room and scene (red & blue). The sonic signature of the loudspeaker not being neutral is more to blame for this behavior than the room.

A small lateral shift from the sweet spot shifts the whole auditory scene in the direction of the shift and for a listener off to the side the scene essentially collapses into the near loudspeaker. Little is heard from the other speaker. For highly directional speakers this effect can be reduced to some extent by toe-in.

3.2 Optimal Stereo reproduction

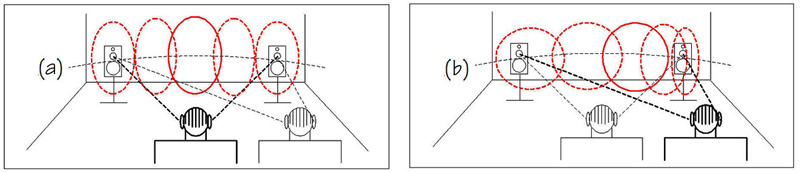

The magic occurs when the loudspeakers seemingly disappear from the sound scene, to the point where one is inclined to ask: what are these two contraptions in front of me doing? Figure 11. All that is perceived is a phantom scene. A scene, which is not hard bounded by loudspeakers, softly windowed and extends behind and above the speakers. While there is a sweet spot, namely the apex of an equilateral triangle, the scene does not collapse into the nearest speaker upon moving to one side, but stays between the speakers with a perspective similar to what one would hear at a concert sitting to the side.

Also, when farther away from the speakers and deep into the reverberant field in the listening room, the tonality does not change. The room is easily forgotten.

The magic is difficult to describe in pictures or words but is recognized within 30 seconds when heard. It usually elicits a big smile or even laughter from the listener. Naive listeners, audiophiles and professionals alike recognize the naturalness of presentation. On many recordings it is 3D in front of the listener and resembles a concert experience. When watching movies on a screen between the speakers, on-screen dialogue and sounds are clearly separated from those off-screen. Center and side speakers are not missed as the two speakers alone render a smooth continuum.

3.2.1 Loudspeaker & Setup Requirements
For the magic to occur there are five requirements, which I have found to be essential:

1) The off-axis frequency response of the loudspeaker in the horizontal plane must mimic the on-axis response. The vertical polar response is not as critical but the formation of lobes should be avoided, i.e. the loudspeaker should be acoustically small. Such a loudspeaker has a neutral signature and its reflections and the reverberated sound field will have the spectral signature of the listening room. The polar pattern could be omni-directional, cardioid or dipolar with frequency independent power response. The omni pattern would produce the strongest interaction with the room and be the least desirable of the three.

2) The loudspeakers must be free of resonant radiation such as coming from vents or panels. Non-linear distortion must be low enough not to identify the speaker location during loud music passages. This demands adequate volume displacement capability of woofers and tweeters.

3) The loudspeakers must be set up at least 1 m distance from left and right side walls and 1 m from the wall behind them. The resulting time delay of about 6 ms is necessary for the ear-brain perceptual apparatus to separate direct from reflected sound streams. With neutral excitation of the room response, the listener can then withdraw attention from the room and process primarily the direct sound streams from the loudspeakers. This is similar to not hearing the ticking clock or to the cocktail party effect where attention and hearing is drawn to information streams of interest. Everything else is moved beyond the acoustic horizon as in survival mode.

4) The wall behind the loudspeakers is preferably diffusive and the wall behind the listener absorptive. The sound waves from the loudspeaker should be allowed to travel freely past the listener and not be reflected from a wall behind.

5) The listening room should have a reverberation time around 450 ms, i.e. be neither acoustically dead nor overly live but comfortable for conversation and entertainment. If anything it should err in the direction of liveliness.

Loudspeakers that fulfill to varying degree requirements 1) and 2) have been available for a long time¹⁷. In the dipole family there are the physically and acoustically large panel radiators, for instance from KLH, SoundLab, MartinLogan or Quad. The Quad ESL63 inspired me to find a design that did not suffer from beaming, had extended bass, and was capable of reproducing large dynamics while still preserving the desirable characteristics of the Quad. Omni-directional loudspeakers are exemplified by Ohm Walsh, Bose, German Physiks and MBL; cardioid speakers are available from Gradient, MEG or Kii. Highly directional and efficient speakers were built by Klipsch. The overwhelming mass of loudspeakers sold, though, remains in the box paradigm.

My own loudspeaker designs are first and foremost for use in my own living spaces. Thus I work only under self-imposed constraints in terms of cost, size and aesthetics. A loudspeaker is to me not a piece of furniture but a transducer. As such it has an electrical input and produces an acoustic sound-field as output. I do not sell loudspeakers but offer construction plans for DIY duplication. I like to share what has given me satisfaction and enjoyment. Hopefully my work will have some influence on commercial products.

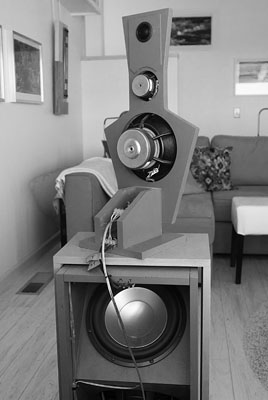

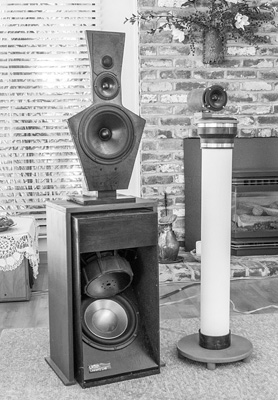

Here then are two recent examples^18,19, LX521.4 and LXmini, which, from the start, were designed with polar pattern and output capability that would be useful in a wide range of domestic room sizes and also capable of the magic mentioned above. The first is a full-range dipole, the second a mix of omni, cardioid, dipole and forward firing radiation. Figure 12.

4.1 Dipole Loudspeaker Design Approach

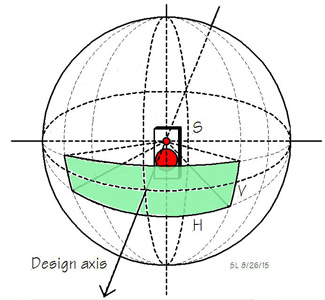

Having clear objectives of where I intend the speaker to be used and what I want to accomplish, my approach to loudspeaker design involves the following steps - usually some of the steps have to be iterated to arrive at a solution that is satisfactory to me.

a) First is driver selection for volume displacement capability at low distortion, and small acoustic size for the intended frequency range of use.

b) Next an educated guess has to be made as to the baffle size and shape, which might provide acceptable dipole behavior over as wide a frequency range as possible for each driver.

c) A prototype baffle is built and the polar response is measured in the frontal hemisphere under free-field conditions.

d) The prototype baffle is modified until an acceptable dipole range is found for each driver.

e) Each driver is equalized for flat on-design-axis frequency response and equal output level.

f) The overlap in dipole behavior with the driver below and above in frequency and its volume displacement capability defines the electrical crossover frequency and filter order.

g) With crossovers and equalization active I reverse the polarity of adjacent drivers and adjust the relative electrical signal phase shift or delay to obtain maximum acoustic cancellation at the design-axis measurement point.

h) When satisfied with free-field measurements I listen to a single speaker in monaural in my listening room. I go back to free-field measurements if something seems wrong.

i) I build a second speaker and listen in stereo in my listening room. Adjust woofer level. Go back to free-field measurements if something seems wrong.

Due to the acoustic short circuit between front and rear radiation of drivers on an open baffle it becomes especially important to find a woofer driver which is capable of large excursions without non-linear jumping effects and without air turbulence noise. Figure 13.

4.1.1 Dipole woofer

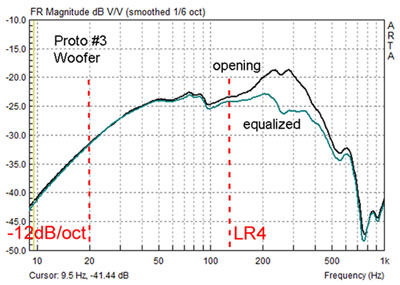

The woofer’s (2 x 10" drivers) frequency response was measured with the microphone tip in the center of the opening plane of the woofer’s V-frame baffle. Figure 14. The baffle sat on the ground to account for half-space operation. The response exhibits a peak at 250 Hz, which is the result of a ë/4 cavity-length resonance caused by the acoustic wave impedance mismatch at the baffle opening. The peak is easily equalized. If measured at a large distance, where front and rear radiation from the baffle combine, the woofer’s response would decrease at 6 dB/octave rate. Thus to obtain an identical dipole response, as the one measured in the opening plane, it is necessary to add equalization, which boosts lower frequencies at 6 dB/octave rate. Additional equalization can turn the dipole response flat to a target corner. The woofer is crossed over at 120 Hz to a lower midrange driver and operates only in a range where it is acoustically small.

4.1.2 Dipolar Lower Midrange

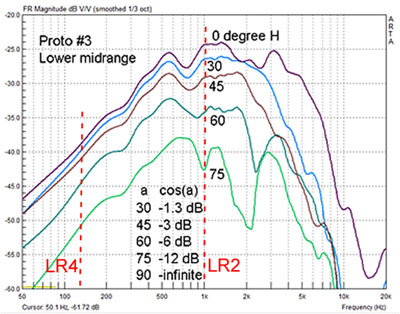

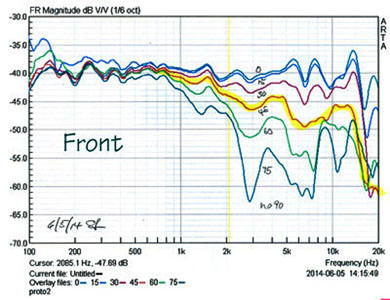

The polar response of the top baffle was measured from 0.5 m distance in the backyard, being elevated and positioned on a manual turntable. The lower midrange 8" driver exhibits close to textbook behavior up to about 1 kHz. Figure 15. The baffle shape was determined empirically. Only frontal radiation was measured. Rear radiation reaches the listener via room reflections and reverberation, which makes the details of the response much less important. The total power radiated to the rear is assumed to be similar to the total power radiated to the front hemisphere.

4.1.3 Dipolar Upper Midrange

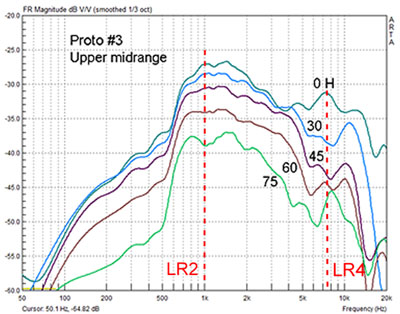

The upper midrange driver with its narrow baffle is well behaved above 1 kHz. Figure 16. The response widens between 0⁰ and 30⁰ around 3.5 kHz but is in general quite useable up to 10 kHz. When the upper and lower midrange drivers are combined with a LR2 crossover at 1 kHz, i.e. a crossover that is 6 dB down at 1 kHz and provides in-phase addition, then the resulting overall response indicates dipolar behavior over a very wide frequency range. In general, it would take many sets of measurements to fully describe the polar radiation in detail when the baffle dimensions and vertical distances between drivers are no longer acoustically small.

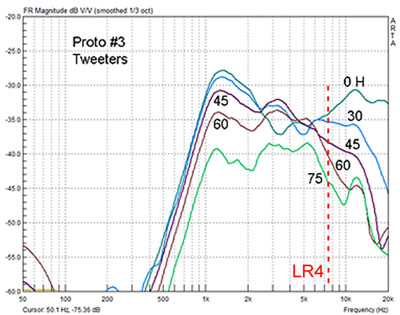

4.1.4 Dipolar Tweeters
Radiation from front and rear tweeters interacts in space forming a radiation pattern with sound cancellation in the plane of the baffle and a dipole-like angular dependency. Figure 17. Below 2 kHz the baffle is acoustically small and a true dipole response results. Above 5 kHz the inherent directivity of the dome drivers takes over. Front and rear radiation only interact at large off-axis angles. An LR4 crossover at 7.5 kHz was chosen to combine the tweeters with lower and upper midranges.

4.1.5 Equalization & Crossovers

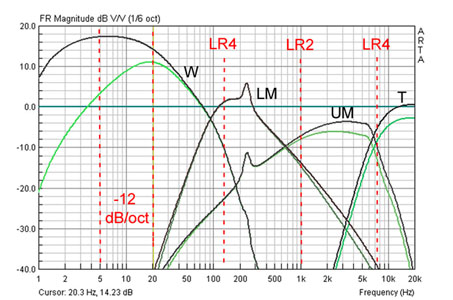

Except for the tweeter, extensive equalization is required for the other drivers to obtain an acoustically flat on-axis response. Figure 18. It would be impractical to do this with passive, high level networks, though it could be accomplished with opamp circuitry. The easiest way today is to implement the filters in DSP and to use individual power amplifiers for each driver.

4.1.6 Room Response
Driver centers are vertically aligned along a 1 m line. The loudspeaker's overall height is 1.25 m. The vertical response around the design axis, which intersects the top panel between lower and upper midrange drivers, is typically only optimal over a +/-20⁰ window at the top end of the frequency range under free-field conditions because distances between drivers are no longer acoustically small. The wide, cos(á) dispersion of individual drivers not only horizontally but also to a high degree vertically generates spectrally neutral reflections and reverberation. Thus moving about in the listening room does not change the tonality of sound. Only the preciseness of imaging changes as the direct-to-reverberant sound ratio decreases with distance. The minimum distance to the sweet spot is about 2.5 m with the minimum room volume about 75 m³ to allow for space and breathing room around the loudspeakers.

4.2 Hybrid Loudspeaker

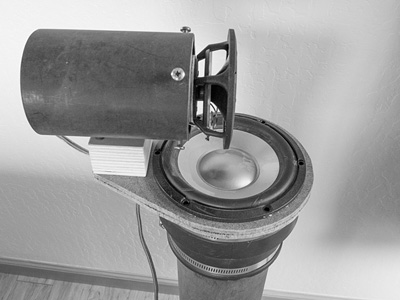

A physically small loudspeaker like the LXmini 2-way can have a well defined radiation pattern due to small baffle areas and driver layout. Figure 19. The upward pointing woofer driver (5 inch) at the end of a sealed pipe radiates omni-directional at low frequencies. The open baffle full-range driver (3 inch) above it radiates as a dipole. The combined output of the two drivers in the crossover frequency region takes on cardioid behavior. A cylindrical scattering body behind the dipole disperses the rear radiation to minimize specular reflections when the loudspeaker is set up close to a wall behind it. Bass and full-range sections of the loudspeaker are acoustically coincident. The combined source is at ear height for a seated listener and bass is not reinforced by the floor, but immediate surroundings will have some effect, if they are close - that is unavoidable.

The woofer's PVC pipe is stuffed with absorbing material. The sound wave traveling down inside the pipe is attenuated and reflected from the sealed end. It is attenuated further coming back up the pipe and through the aluminum cone of the woofer driver so that it is about 40 dB below the radiation coming directly off the front of the cone. The pipe thus acts as an infinite acoustic transmission line with 40 dB return loss. A pipe also has extreme circumferential stiffness so that spurious radiation from its large surface area is completely insignificant. For the critical frequency range up to 1 kHz where the open-baffle full-range driver takes over, the sealed pipe behaves quite differently from a sealed or vented box with its spurious panel vibrations.

The orthogonal arrangement of driver axes, which is unlike a coaxial driver arrangement, should minimize Doppler distortion. But I cannot say how much this contributes to the excellent sound from the LXmini. A pair of these speakers can be listened to as close as from 1 m and is ideal as a near-field monitor or in a small room.

4.2.1 Radiation Pattern

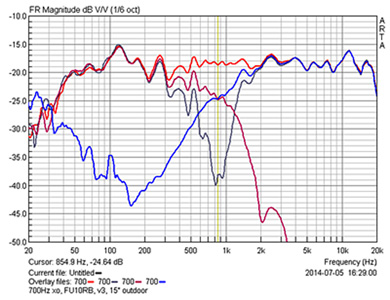

The on-axis response extends from 45 Hz to 20 kHz. Figure 20. The radiation pattern is essentially rotation symmetrical around the full-range driver axis. It can be seen that the loudspeaker becomes increasingly more directional above 1 kHz in the frontal hemisphere as it transitions from omni-directional through cardoid to dipole radiation. The dipole then monotonically narrows dispersion due to 3" driver acoustic size. Figure 21.

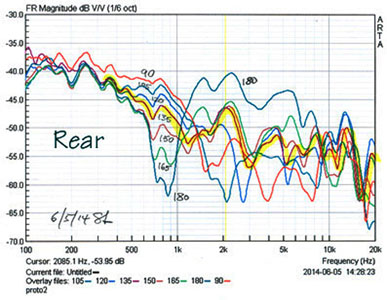

In the rear hemisphere the radiation pattern goes from omni-directional at low frequencies through a cardioid notch to more or less diffusive radiation above 2 kHz due to the diffracting body, which also adds some amount of attenuation. Figure 22. Overall the loudspeaker has a power response which falls with increasing frequency from 0 dB at the low end to -4.8 dB for cardioid and dipole regions and further due to the increasing directivity of the full-range driver. But unlike a box speaker it preserves much of the rear radiation for the reverberant sound field in the room, which leads to a more neutral tonality. Again, as with the LX521, moving about in the listening room does not change that tonality except when standing close to the LXmini or behind it. From the sweet spot both the LXmini and LX521 sound and image very much alike.

4.2.2 Equalization & Crossover

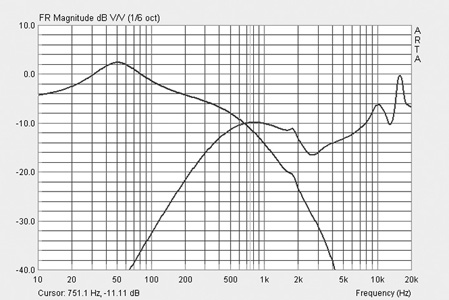

The woofer driver requires minimal equalization to extend its response to 45 Hz. Below this frequency it rolls off at 12 dB/octave rate due to the sealed pipe enclosure. The frequency response shaping is accomplished most easily with a DSP unit having stereo inputs and four output channels. The full-range driver requires extensive equalization for a flat output response to 20 kHz. Figure 23. The driver works in break-up mode over most of its frequency range. It would be difficult and costly to equalize it with passive or active analog circuitry.

The electrical crossover between woofer and full-range drivers is set to 700 Hz and LR2 with 12 dB/octave filter slopes for wide overlap between the two drivers in order to gradually and smoothly change the radiation pattern from omni-directional to dipolar while going through a cardioid frequency region. Each driver requires its own power amplifier of 50 W to 150 W output capability, i.e. 4-channels of amplification for a stereo setup.

The LXmini strikes a remarkable balance between acoustic performance, physical size, bass output and cost. The speaker is at home in any size domestic room. It is well capable of producing the magic which I have described above.

The loudspeaker industry has developed excellent electro-acoustic transducers/drivers over the last 50 years. But when put in boxes of various shapes and sizes in order to send a flat on-axis signal to the listener, illuminating the room neutrally without spurious emissions from the baffle panels has resulted in progress that has been marginal at best.

Actually, the greatest weakness of today's speakers is their acoustic design - I do not need to name manufacturers. Exceptions are rare and their market share is small. Regarding this lack of progress I would also blame equipment reviewers of the various audiophile magazines because in the end, they are the gate keepers and usually beholden to the magazine's advertisers.

If each manufacturer would build a pair of LXmini's as a reference for their product development in order to hear which way they exceed or miss its performance, then real progress might be made. Also, each equipment reviewer should build a pair of LXmini's as a reference for comparing other speakers; this would help to make obvious, in a perceptually meaningful way, the differences between sound systems as experienced in their unique and pictured listening environment. Since it is not difficult nor costly for consumers to DIY build the LXmini as their own reference, they would then know what to expect from a reviewer's description of a different loudspeaker.

I am not saying this because I think the LXmini is the ultimate sound quality reference. Rather, the LXmini defines a standard of excellence that top of the line loudspeakers should meet or exceed before being recognized as a superlative product by reviewers and consumers.

1. A. S. Bregman, Auditory Scene Analysis - The Perceptual Organization of Sound, The MIT Press, 1999

2. L. L. Beranek & T. J. Mellow, "Acoustics - Sound Fields and Transducers", Elsevier-Academic Press, 2012

5. H. Wittek, Image Assistant, JAVA applet for determining the "Stereo Recording Angle", www.hauptmikrofon.de

7. B. Rakert, W. M. Hartmann, "Localization of sound in rooms. V. Binaural coherence and human sensitivity to interaural time differences in noise", J. Acoust. Soc. Am., Vol. 128, No. 5, November 2010

8. S. Linkwitz, A Model for Rendering Stereo Signals in the ITD-Range of Hearing, 133rd AES Convention, San Francisco 2012, Preprint 8713

9. E. Benjamin, An experimental Verification of Localization in Two-Channel Stereo, 121st AES Convention, San Francisco 2006, Preprint 6968

13. S. Linkwitz, Room Reflections Misunderstood?, 123rd AES Convention, New York, October 2007, Preprint 7162

16. S. Linkwitz, Investigation of Sound Quality Differences between Monopolar and Dipolar Woofers in Small Rooms,
105^th AES Convention, San Francisco, 1998, Preprint 4786,

17. The Absolute Sound's Illustrated History of High-End Audio, Volume 1: Loudspeakers, Edited by Robert Harley,
Nextscreen, Austin, Texas 2013
