Loudspeaker system design

    A Three-Enclosure Loudspeaker System

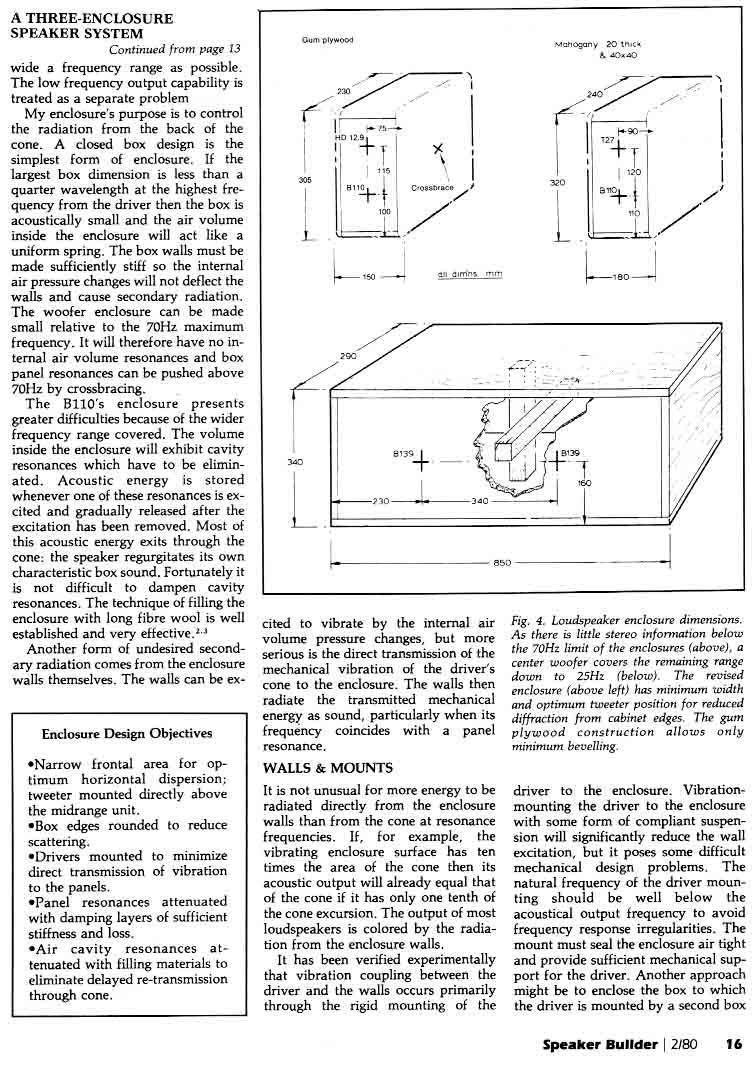

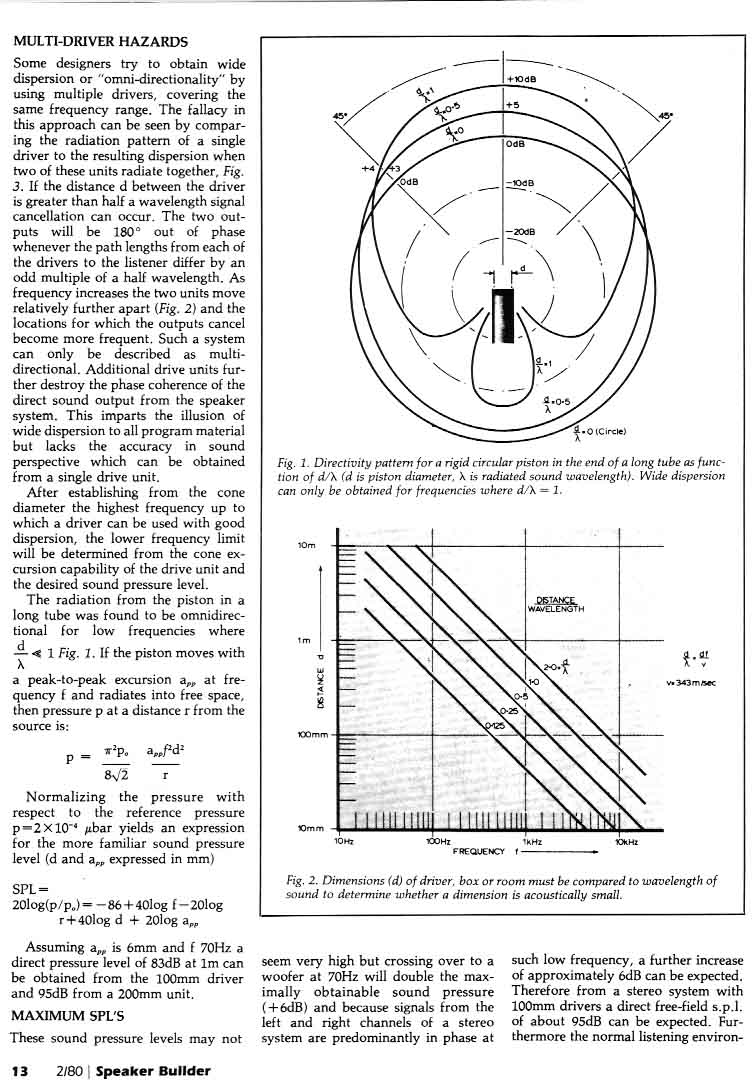

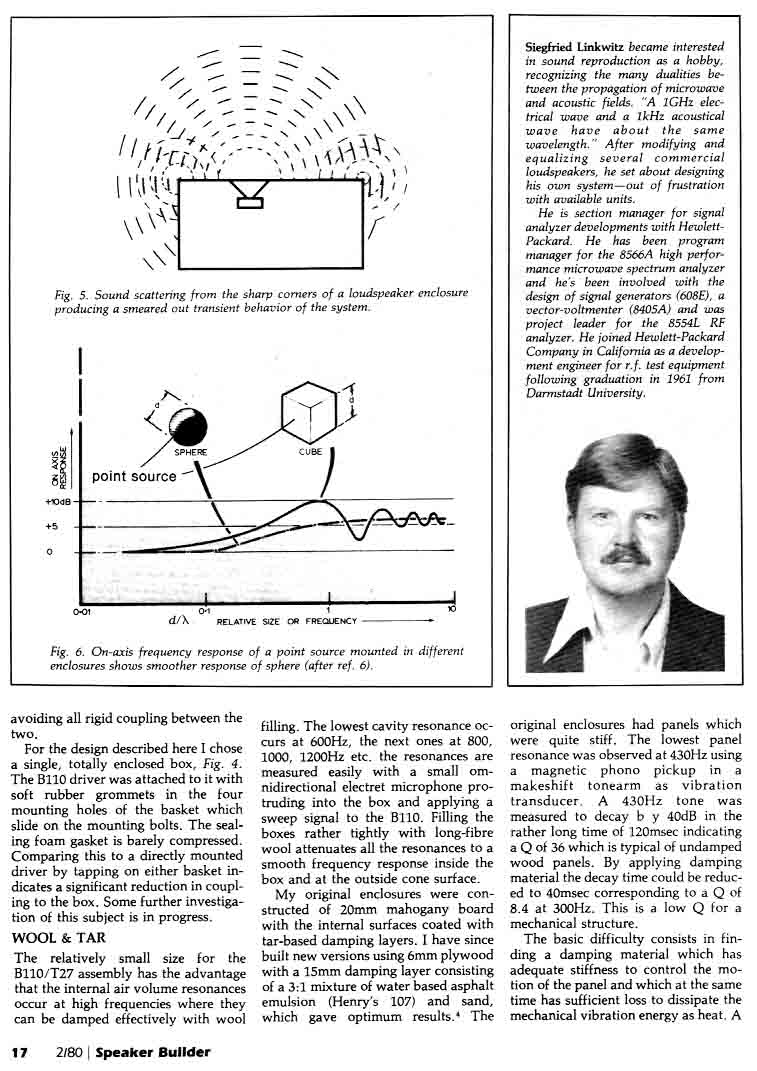

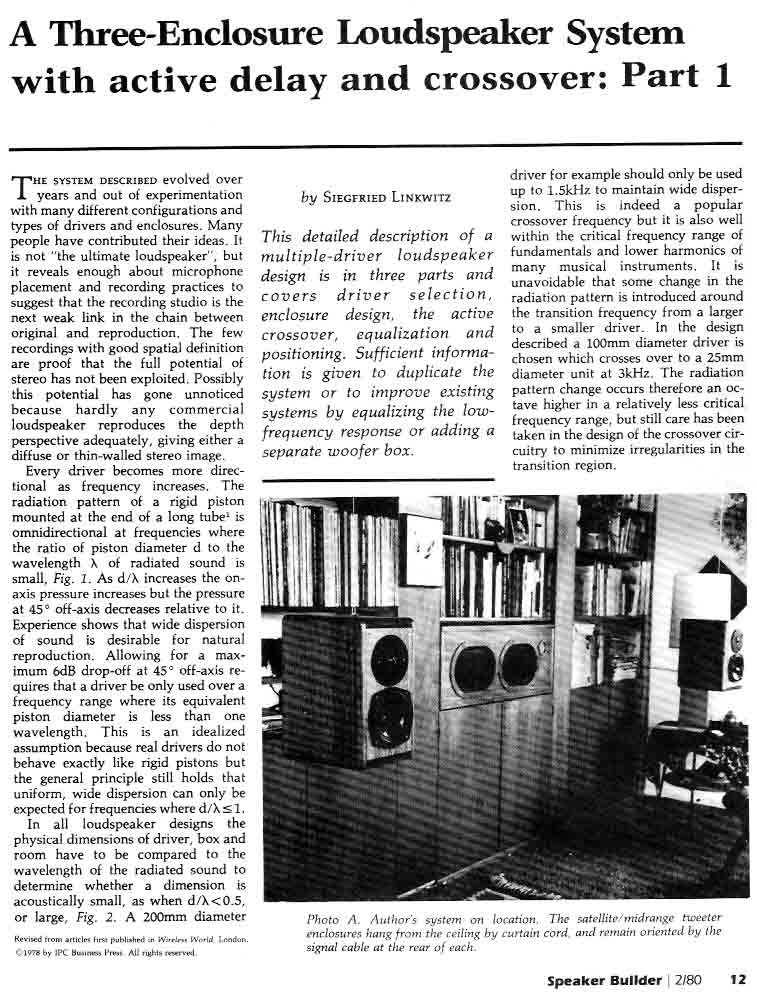

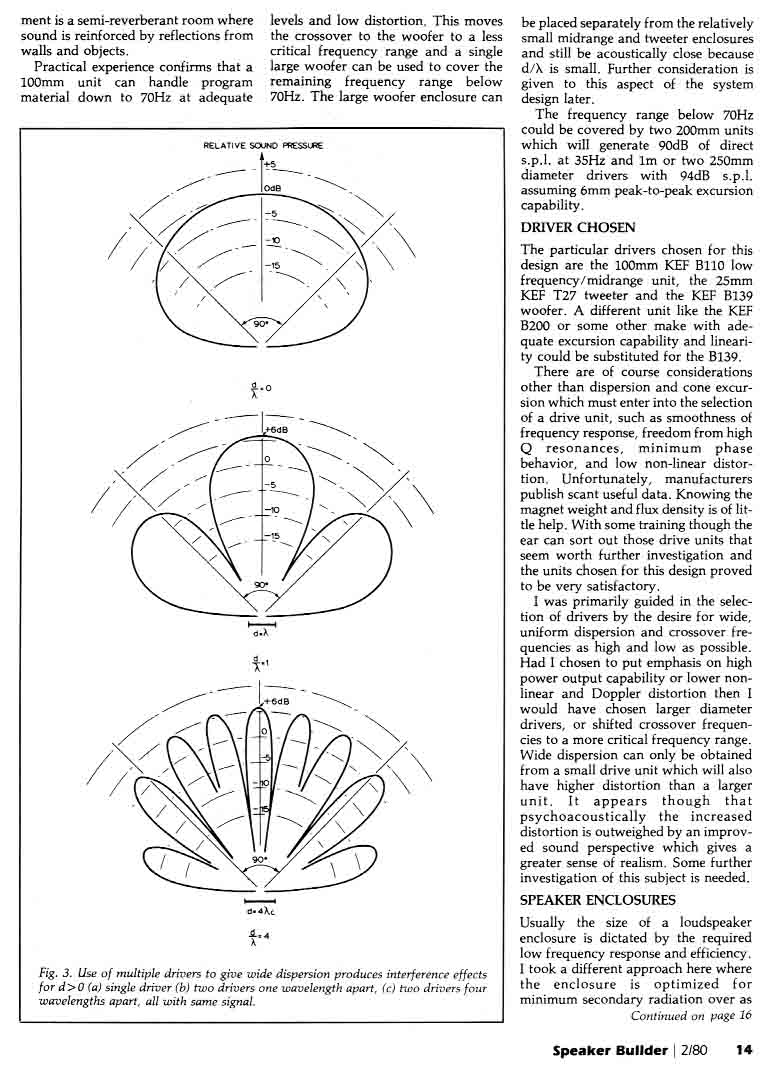

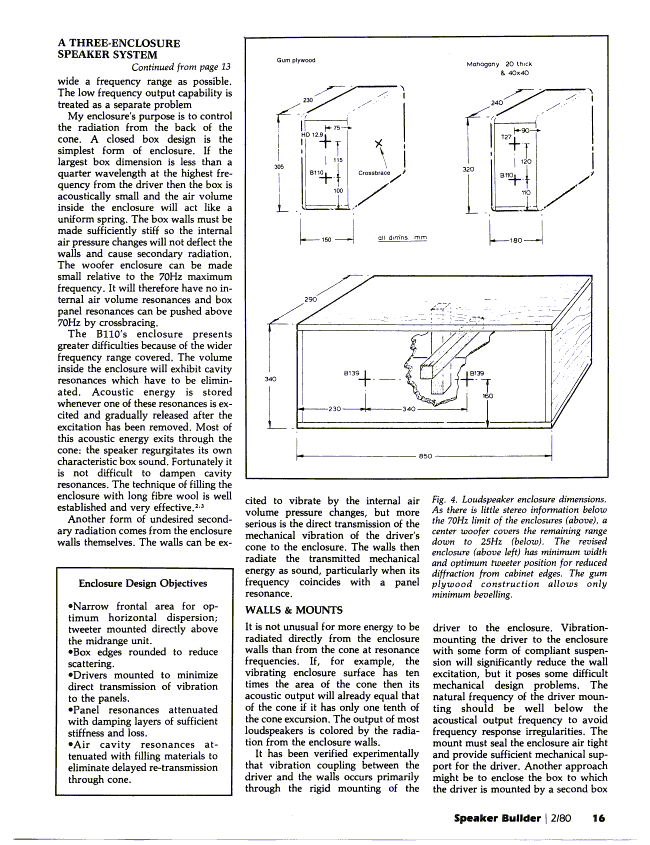

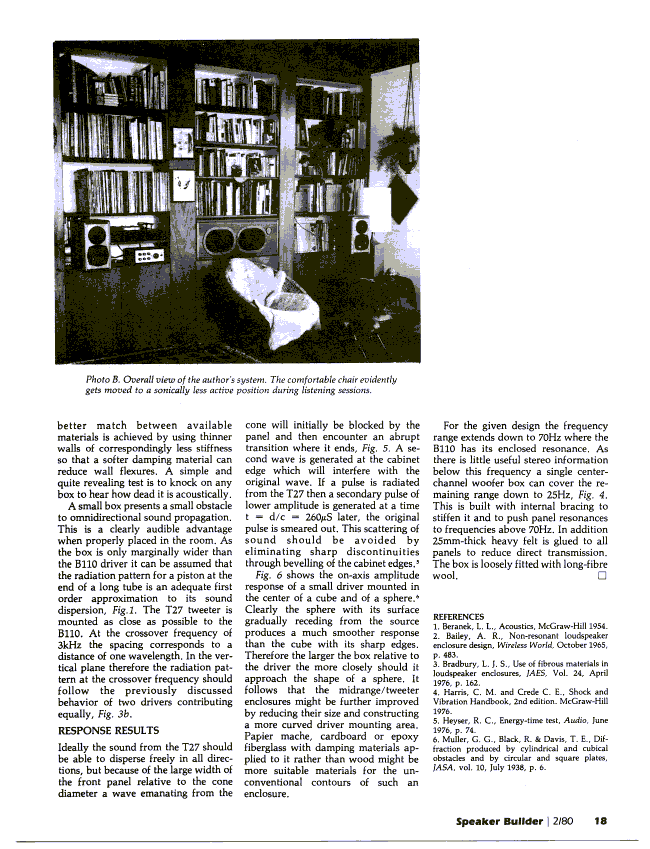

    Part 1 - Cabinet design

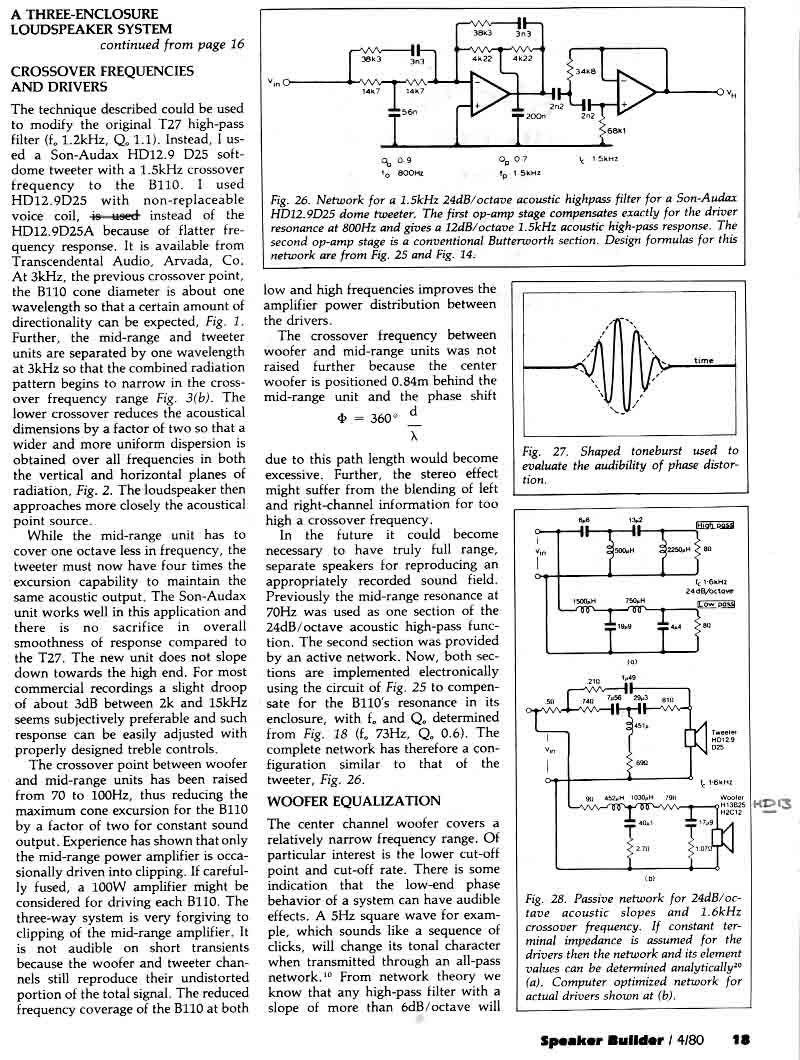

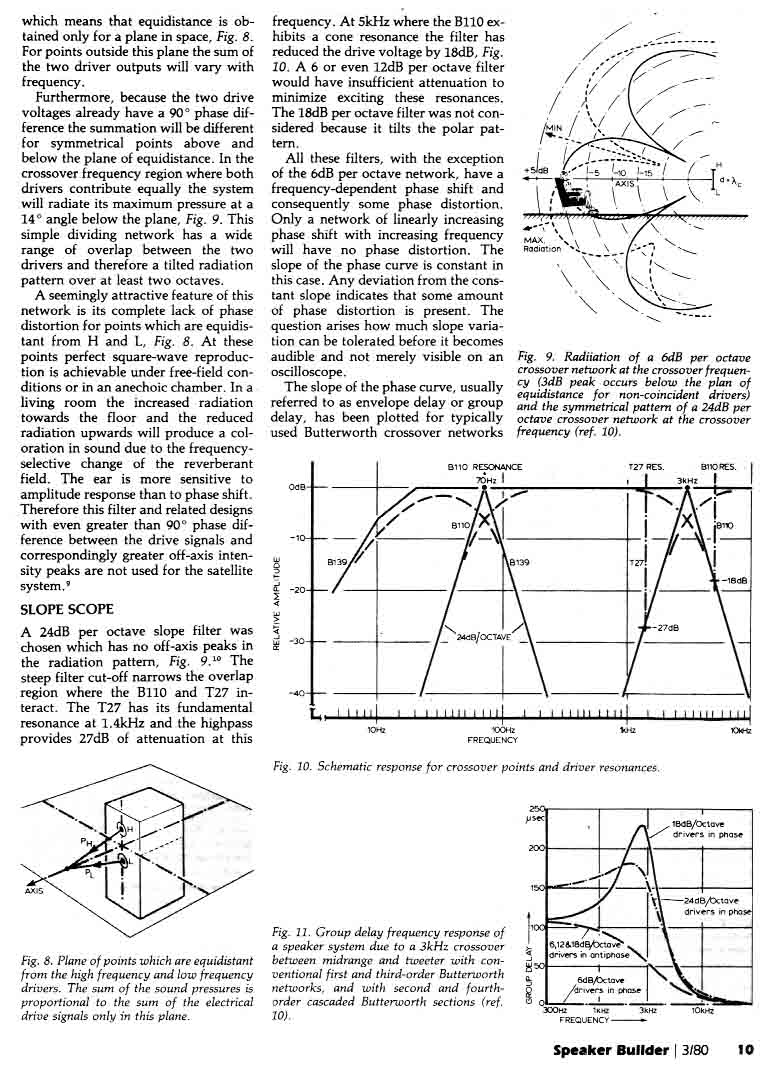

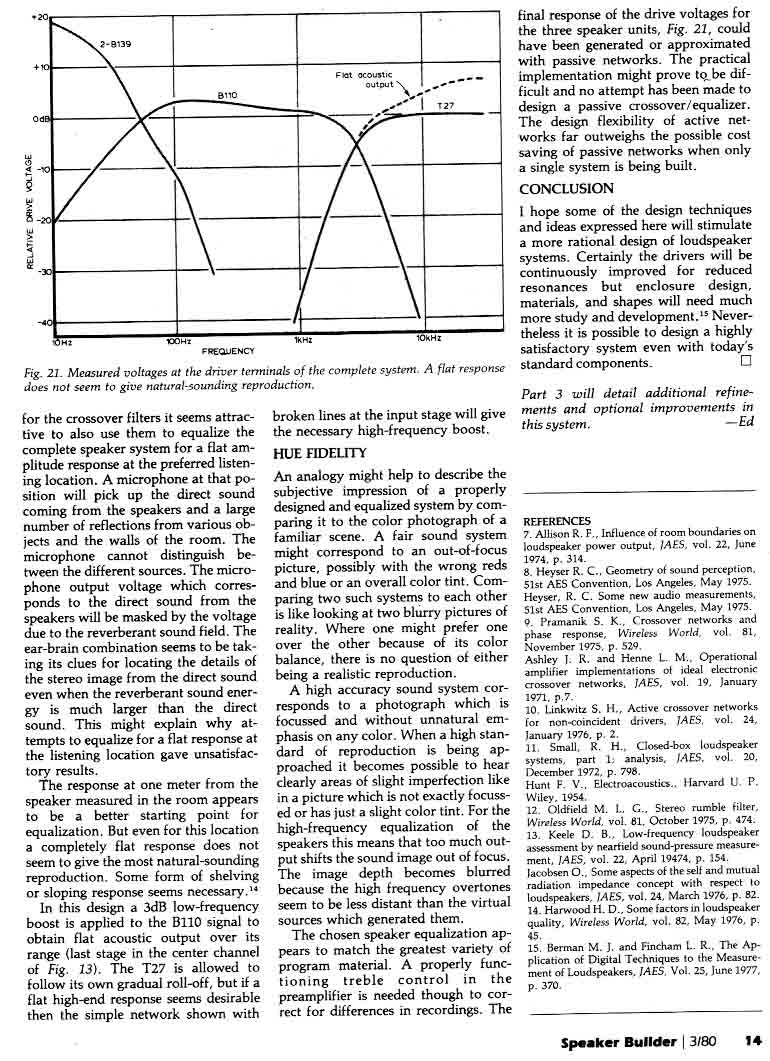

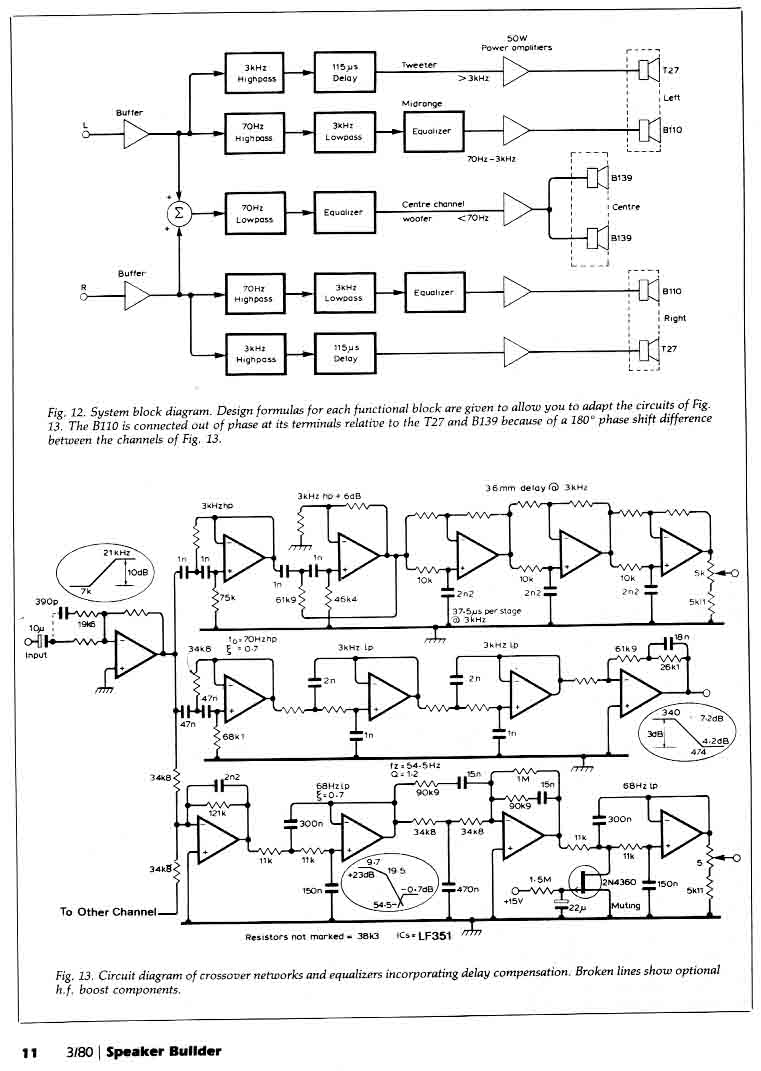

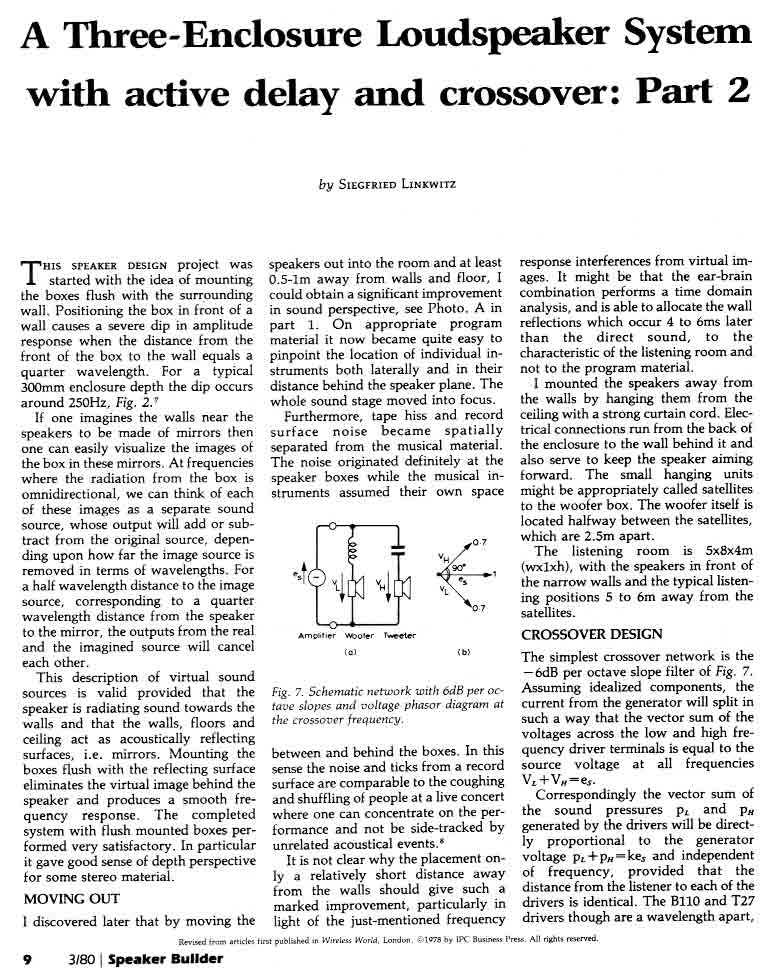

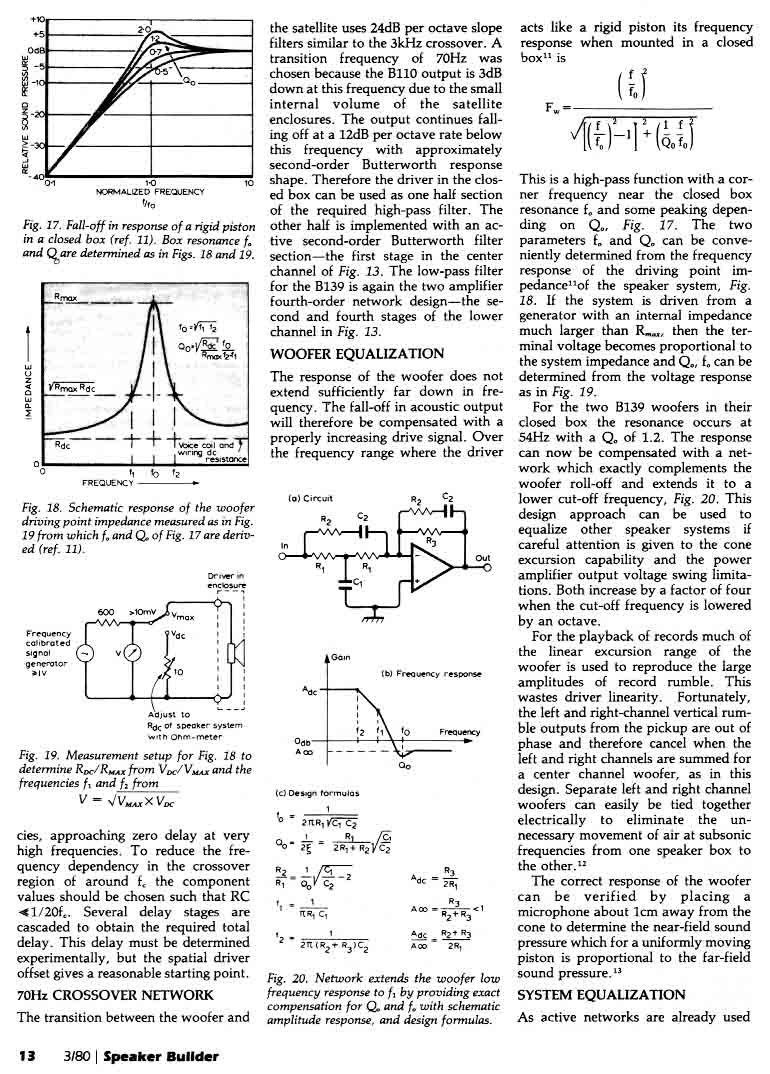

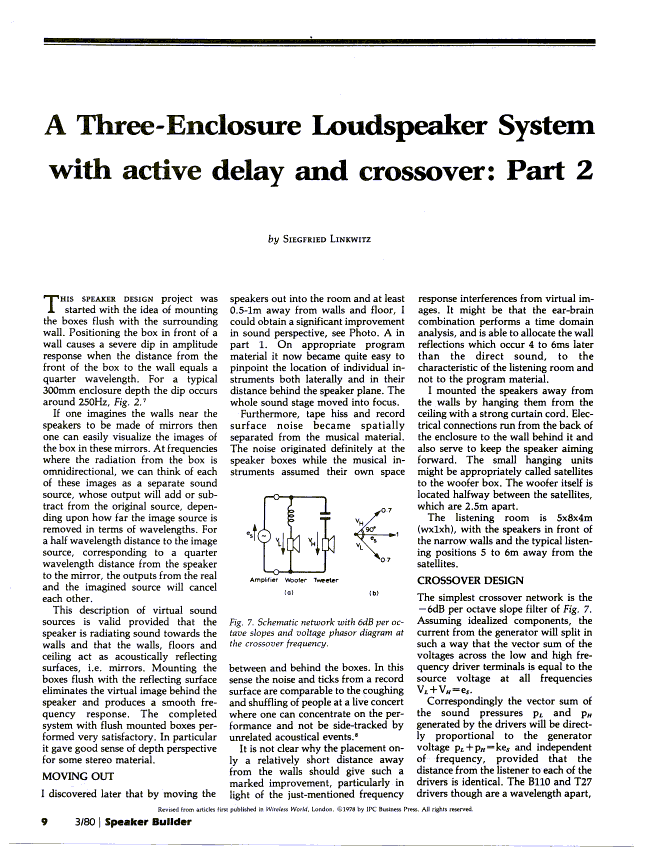

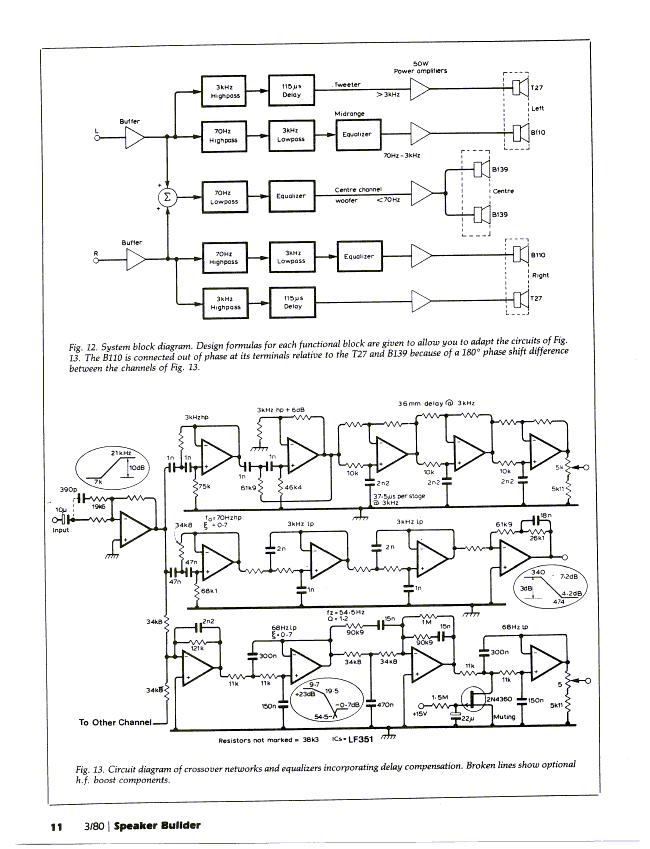

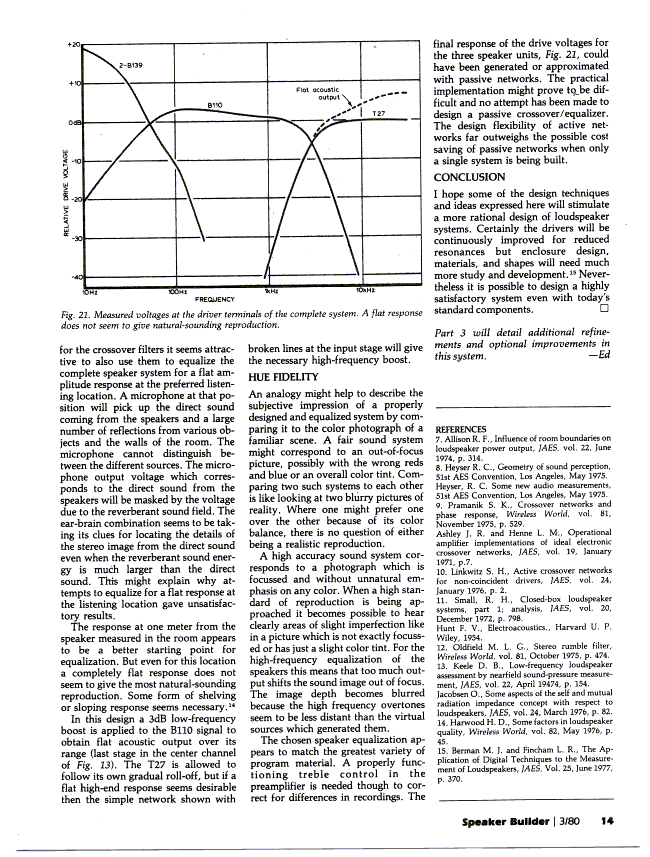

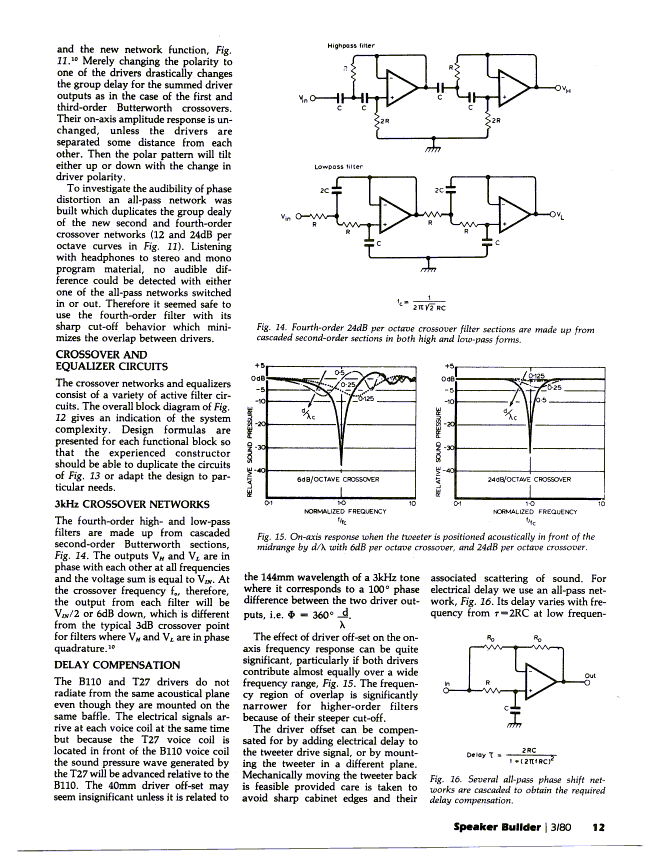

    Part 2 - Electronic crossover and equalization

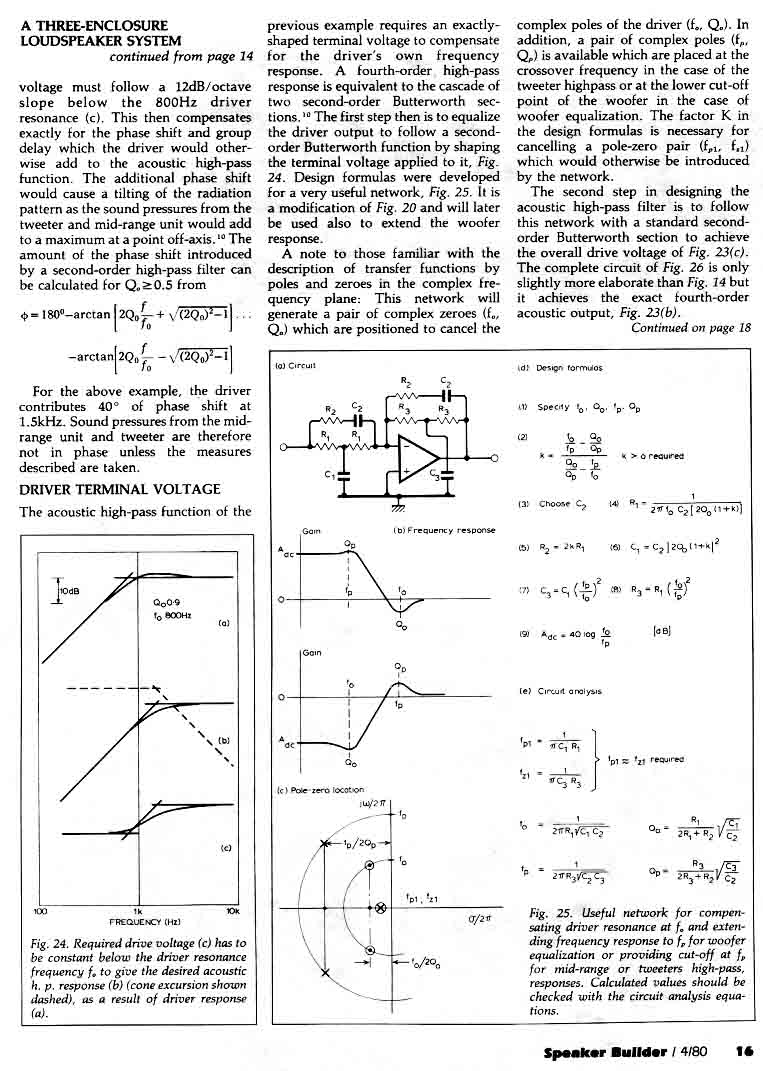

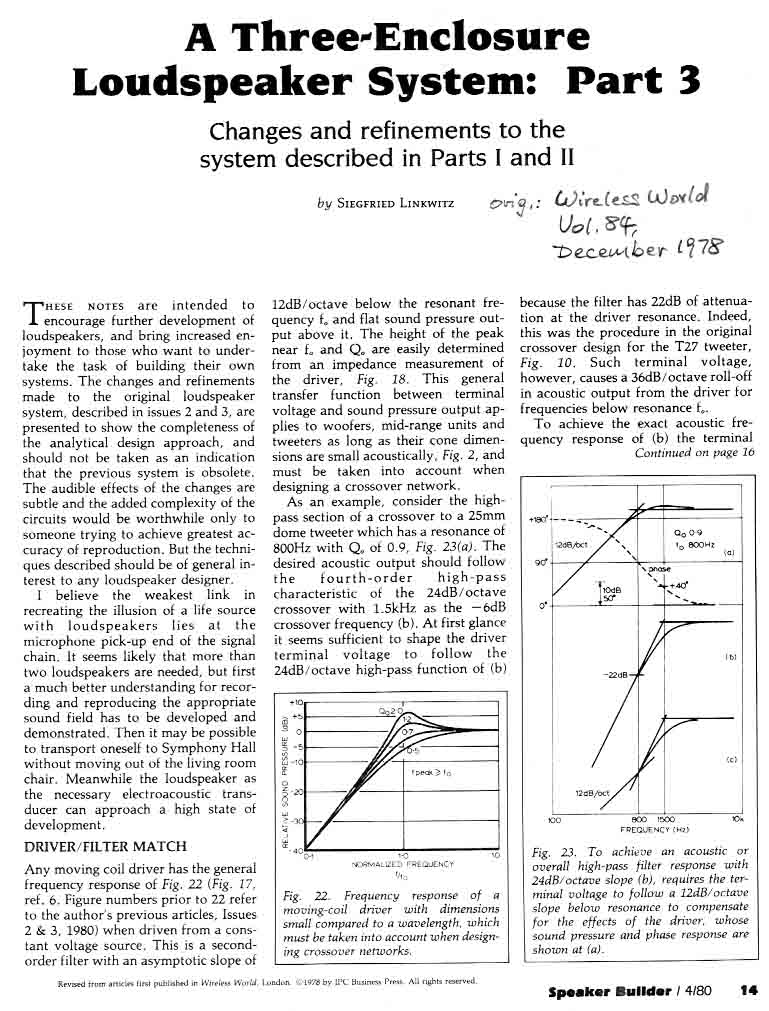

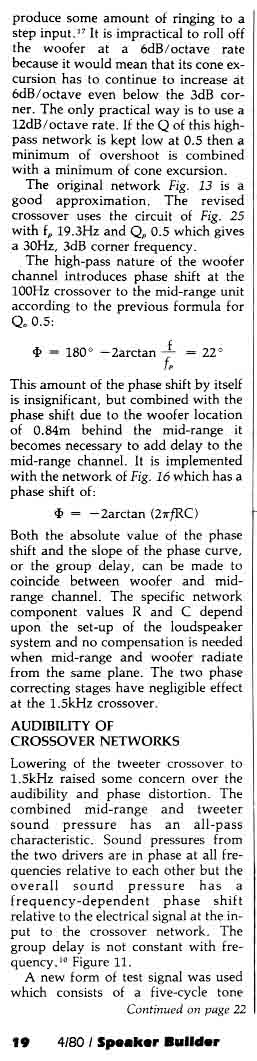

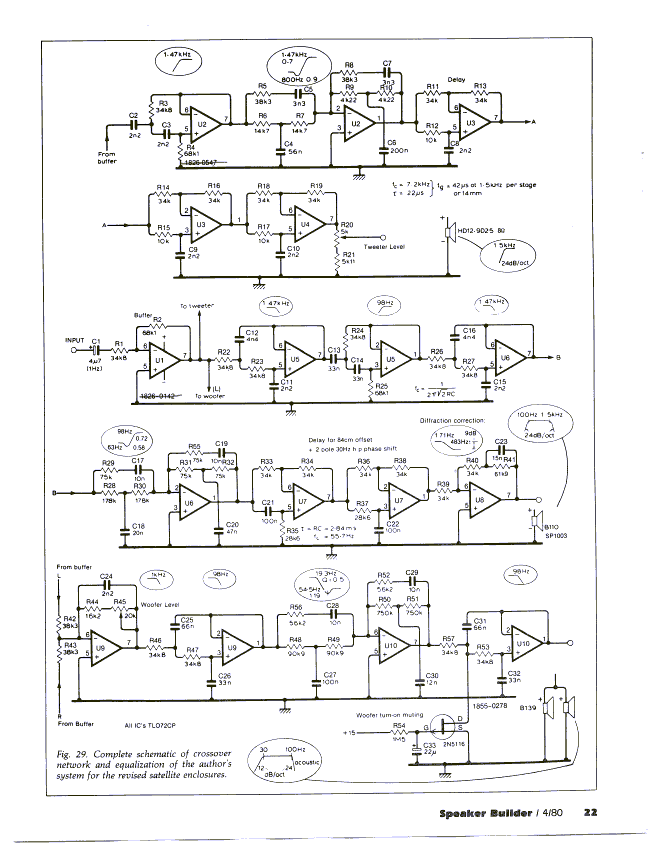

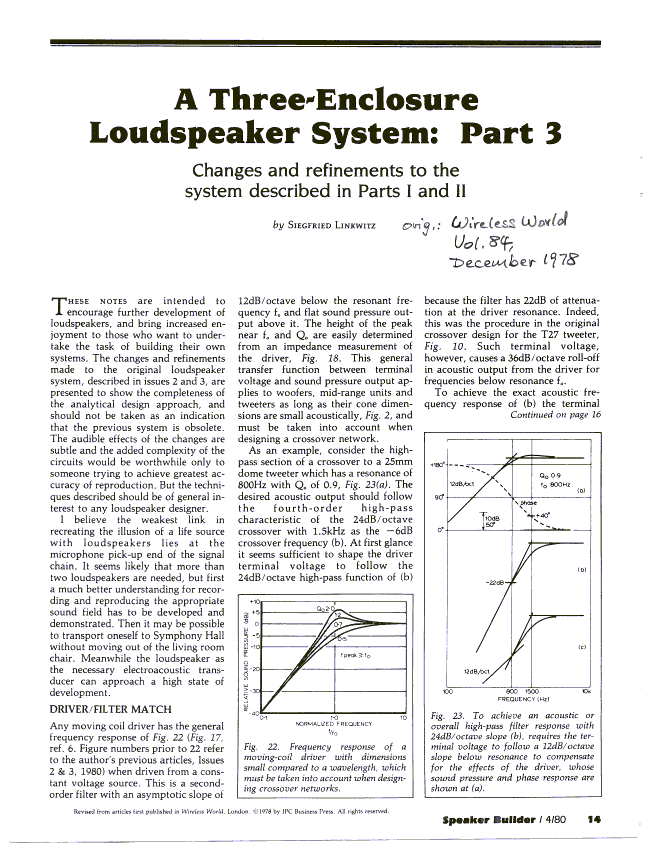

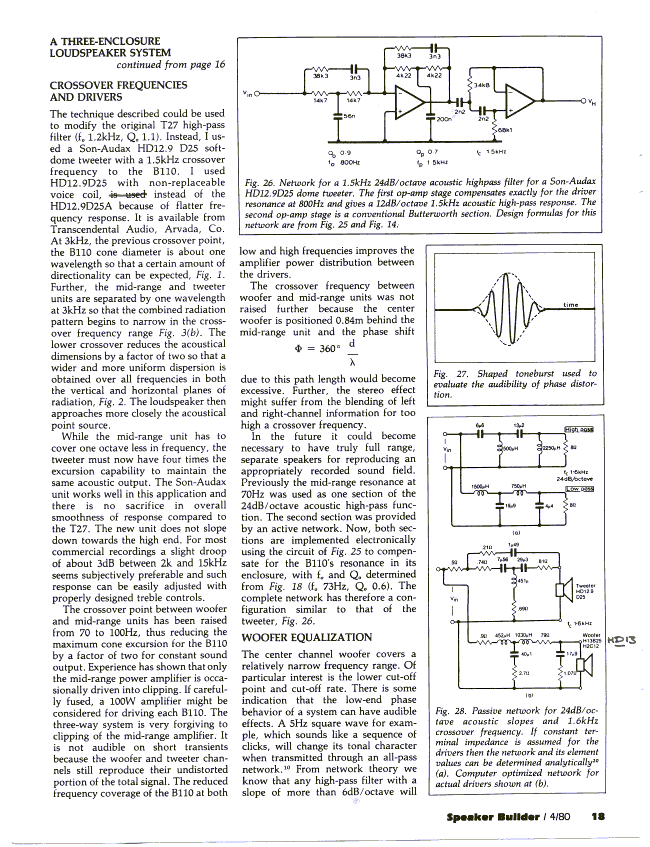

    Part 3 - Changes and refinements

    Excursion-Limited SPL Nomographs

    Speaker Builder Mailbox

--------------------------------------------------------------------------------------------------------------------------------

Revised from articles first published in Wireless World, London, 1978
