Five Years Later
My search for a camera that best fits my needs and which,
in my opinion, provides an excellent set of engineering trade-offs, did not end
in 2008. Technology moved on. Now we have CMOS sensors, wider aperture lenses and respectable electronic view finders. I find the typical
LCD on the rear of the camera only useful for indoor photography. Outdoors, in
sun or snow, the LCD is pretty much useless for composing a picture, for fast
action shots, or reading and changing camera settings. CMOS sensors make rapid
picture bursts possible and in general make a camera quicker. Their dynamic
range, though, is not different from that of CCD sensors. Thus for increased
dynamic range the sensor area must be larger, which leads to bulkier lenses and
somewhat larger camera bodies. But for small sensors there are now new lenses
with wider aperture not only at wide angles, but also
at the telephoto end of the zoom range. This helps with low available light photography or allows
for shorter exposure times to freeze movement. Any improvements in depth of
field control from using wider apertures are only marginal due to the short focal lengths
required for the small
sensors.

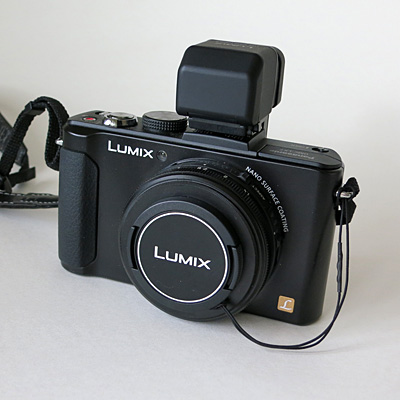

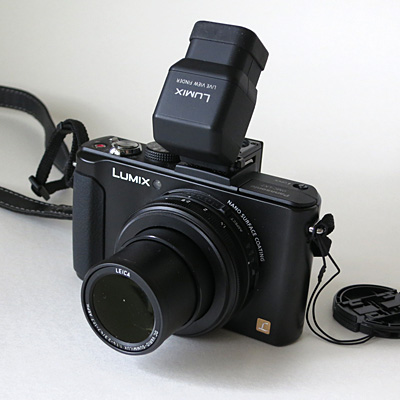

Panasonic's Lumix line of cameras has gone from
LX2 to LX3, to LX5 and now LX7. The latest model, above, is still of
reasonably small size, but now has a MOS sensor, a 24-90 mm equivalent
focal length lens with outstanding F1.4 to F2.3 opening. Most important
to me is the hot-shoe which accepts the bright and fast electronic view
finder EVF2. I usually work in aperture priority mode and so the
aperture marked control ring around the lens barrel is very convenient. |
The size of the LX7 has increased slightly over
earlier models. Image quality with the new lens, sensor and jpg
processor are so good that I rarely use the raw mode. Multiple exposures
for later HD processing are so fast that one can work without a tripod
in most situations.
I feel the review of the LX7 in DPReview does not do full
justice to this capable camera. |

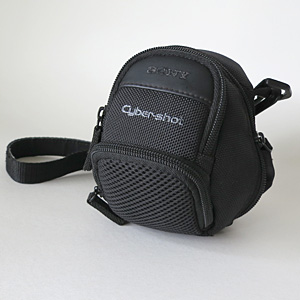

The LX7 with EVF and shoulder strap attached fits
into a small Sony camcorder bag. I carry it around
the waist. Camera with EVF attached also slip into a coat with large pockets.
When walking I often carry the camera in front of my chest, ready to
take pictures.
The camera bag has room for a a spare battery, a micro-fibre cleaning
cloth, extra SD card and a Voigtlaender 50 mm optical view finder with
1:1 picture size. |
I do not like to use a flash that is built into
the camera, or to carry a bulky external flash with me. I prefer the
naturalness of available light over the artificial effects of flash.

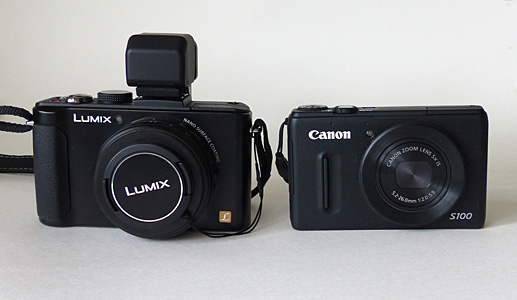

Earlier I had bought a Canon S100 for its really
small size and low light capability. It slips into any pocket and is
unobtrusive. Though this is a very capable camera I use it rarely
because I love the LX7/EVF2. Picture
quality is comparable between the two, but the LX7's user interface and
handling are superior to the S100. |
Original files: GoldenGate.jpg - GoldenGate.rw2
 |
Americas Cup races were
held last year in San Francisco Bay. As a longtime but now retired
windsurfer I still have a fascination with high-tech, fast moving
sailing crafts. I watched the racing from shore and took pictures with
my trusted FZ50, which has a 35-420 mm, F2.8-3.7 zoom lens. I soon found
out that view finder and handling speed were not up to the task. This

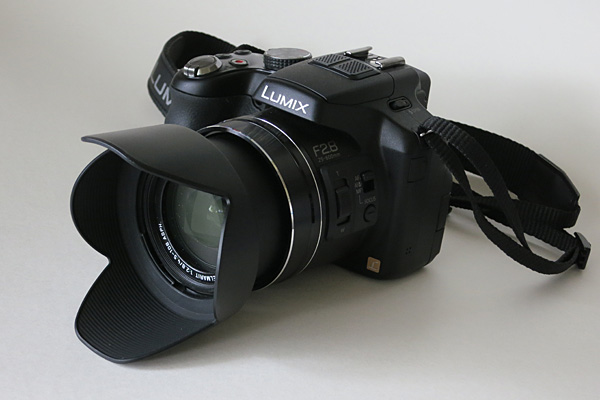

was a convenient excuse to quickly buy the new Panasonic Lumix FZ200. It carries a 25-600 mm, F2.8 zoom lens and
most importantly has a CMOS sensor for fast action shooting. The view
finder is also much better than the FZ50's, but not quite on par with
the EVF2. This camera is an amazing piece of technology. If size did not
matter and I could only own a single compact camera, then I would chose
the FZ200. It's well thought-out design fits an extremely wide range of
applications and with ease. |
Original file: AC45.jpg
My search for the camera that best fits my needs has come
to a conclusion and I want to spend more time to fully use what I have in my
hands. As an engineer I have been fascinated to observe the trade-offs that
camera designers make to optimally use available technology and which directions
they are pushing. The trend now is for larger sensors in small camera bodies,
but the lenses necessarily increase in size and become dimmer. The major gain is
reduced depth of field for background blurring and increased low light
sensitivity. The small sensors of the LX7 and FZ200 cannot compete, but their
performance when shooting raw meets all my needs. I use Adobe Lightroom 4 for
post-processing and printing, Google Picasa for sorting and general viewing.
------------------------------------------------------------------------------------------
