LXmini+2
|
The LXmini+2 was
designed to render sound recordings with clarity, neutrality and with
detailed, 3D-like imaging, when properly set up. The speakers will
reveal what is in a recording, but never add unpleasantness. You will
get lost in the music and have a big smile on your face, guaranteed!

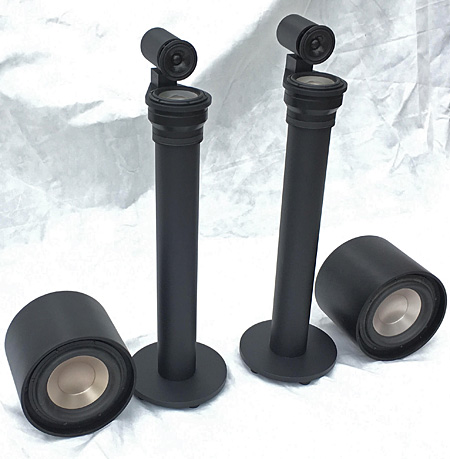

The LXmini+2 is a 3-way loudspeaker,
which can

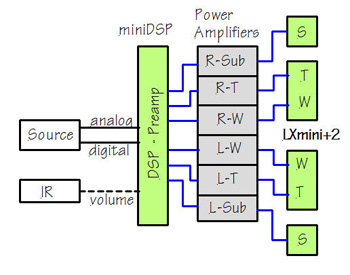

be built DIY from a Kit for around $1800, including a miniDSP 4x10HD equalizer/crossover.
Additionally, 6 power
amplifiers in the 50 W to 200 W range are needed. The speaker's frequency range extends from
25 Hz to 20 kHz. The horizontal and vertical off-axis frequency response, which
is heard via the room, is spectrally neutral. Thus, listening off-axis merely
changes the viewing angle to the phantom acoustic scene rendered by the
seemingly absent loudspeakers.
With an LR2 crossover at a low 60 Hz the two subwoofers can be placed next to or
against the side
walls of a room. Path length
differences to the listener can be compensated for in the DSP unit. Dipole
woofers can also be angled to reduce room mode excitation and thus preserve
articulation in bass sounds.
The LXmini+2 performs sonically like the
LX521.4 and comes close to the full-range dipole's ultimate refinement of sound
presentation, though at 10 dB reduced volume levels in the
bass.
(An upgrade from LXmini to LXmini+2 requires addition of two LXsub2 subwoofers,
a stereo power amplifier (2x 50 W min), and a miniDSP 4x10HD)
---- SL - 8/16
|
LXmini+2 Construction
Plans/License
and ATI Amplifiers
from
www.linkwitzlab.com
2x miniDSP 2x4 .... $210
miniDSP 2x4 Advanced plug-in / 48kHz processing .... $10
2-in analog, 8-out analog, 0.9V
miniDSP 4x10 HD .... $499
miniDSP 4x10 plug-in / 96kHz processing .... $10
2-in analog, 2-in digital, 8-out analog, 2V, local knob and remote
volume
|

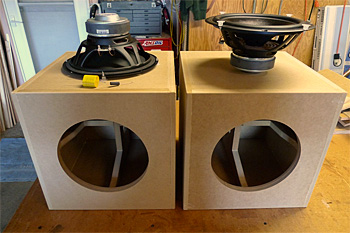

LXmini subwoofer add-on from OPLUG
Forum
|
Sealed box subwoofers for the
LXmini. A cost effective solution when bass is lacking
|
LXmini+2 Kit
- 4+2 SEAS drivers
- Precision cut tubes, predrilled
- CNCed HDF parts in dull black (high density wooden material,
without the downsides of MDF like soaking edges, etc)
- Screwless FR driver mount, no visible screws on upper tube
- Capless lower tube mount
- Screwless upper tube support
- 2 Speakon 4-way plugs “1-click”
- Internal cables
- Rubber couplers
- Damping material
- Dowel joints avoid visible screws
- Internal cables
- U-frame woofers
Kit does not contain: electronic crossover/amp/amp-cables, paint,
glue, license/plans
Upgrades available on request: transparent tubes, lacquered tubes,
etc.
Worldwide shipping:
LXmini+2 Kit incl. drivers ca EU 59€ /
US&CAN 149€ / World 189€
---------------------------------------------------------------------------------------------------------------
LXmini to LXmini+2 Upgrade Kit
Woofer +2 Kit plus
2 SEAS woofer drivers and Neutrik SpeakON plugs
Worldwide
Shipping: LXmini+2 Upgradr Kit incl. drivers: EU 39€ / US&CAN
89€
/ World 109€
---------------------------------------------------------------------------------------------------------------
PowerBox
4180
Includes high-end DSP, preamp and
4 power amps from Hypex.
PowerBox 4180 drives the LXmini part and delivers the processed woofer
signal for an external woofer amplifier:
or
PowerBox 6pro NCore ....
"All in one" solution.
- The PowerBox 6 pro NCore is a preamp with
volume control, a 6-ch DSP with 6ch-DAC, feeding 6 NCore
amplification channel (power
amplifier) in one slim but massive powder-coated aluminum top with
brushed stainless steel front plate.
- Digital inputs: RCA, optical, XLR, AES/EBU, USB
- Analogue inputs: Two pairs of true balanced
analogue inputs (RCA-XLR converter cables available)
- Optimized, fully balanced internal system
layout, allowing shortest signal traces, minimizing losses and artifacts.
- Filter programming for LXMINI; LXmini+2 or
LXstudio, LX521.4: Includes
remote volume control.
- An additional PowerBox 6pro NCore (Follower, €2490 ) allows upgrade to LX521.4
operation.
-
See Burning Amp 2016
and Open
House 2017 and PB
6pro PDF
or
NEW
ASP-based, fully integrated PowerBox
6pro precision analog:
ASP and 6x NCore amplifier channels, rumble filter. For LXmini, LXmini+2,
LXstudio
2x Speaker Y-cable .... €178
“1-click” SpeakOn, Y-cable between
PowerBox 4180 and LXminis, 2x 2,5m
“1-click” SpeakOn, Y-cable between PowerBox 6pro NCore and Woofers, 2x 2,5m
(4x 5,0m .... €218)
Contact: Dr. Frank
Brenner, info@LINKWITZ.store
Plans/License is required to purchase kits and
assembled systems. | Terms
& Conditions |
Send proof of Plans/License ownership to <plans@LINKWITZ.store>
|
DSP /
Pre-amplifier / Power-amplifiers
PowerBox
4180
....
€1890
Includes high-end DSP, preamp and
4 power amps from Hypex.
PowerBox 4180 drives the LXmini part and delivers the processed woofer
signal for an external woofer amplifier:
or
PowerBox 6pro NCore ....
€2490 .
"All in one" solution.
0 .
"All in one" solution.
Includes high-end DSP, preamp and
6 Ncore power amps from Hypex. Remote volume control.
For future upgrades...an additional PowerBox 6pro NCore (Follower, €2490 ) allows upgrade to LX521.4
operation.
See Burning Amp 2016
and Open
House 2017 and PB
6pro PDF
or
NEW
ASP-based, fully integrated PowerBox
6pro precision analog:
ASP and 6x NCore amplifier channels, rumble filter. For LXmini, LXmini+2,
LXstudio
2x Speaker Y-cable .... €178
“1-click” SpeakOn, Y-cable between
PowerBox 4180 and LXminis, 2x 2,5m
“1-click” SpeakOn, Y-cable between PowerBox 6pro NCore and Woofers, 2x 2,5m
Worldwide shipping:
e.g.
EU 25€ / US&CAN 79€ / World 85€, plus 15€ insurance
EU
residents add 19% VAT
is a preamp with
volume control, a 6-ch DSP with 6ch-DAC, feeding a 4-channel power
amplifier in one slim but massive powder-coated aluminum top with
brushed stainless steel front plate.
Digital inputs: RCA, optical, XLR, AES/EBU, USB
Analogue inputs: Two pairs of true balanced
analogue inputs (RCA-XLR converter cables available)
Optimized, fully balanced internal system
layout, allowing shortest signal traces, minimizing losses and artifacts.
Contact: Dr. Frank
Brenner, info@LINKWITZ.store
Plans/License is required to purchase kits and
assembled systems. | Terms
& Conditions |
Send proof of Plans/License ownership to <plans@LINKWITZ.store> |
LXmini+2
Loudspeaker System
Loudspeakers / DSP /
Pre-amplifier / 4 Power-amplifiers
The System contains:
2x LXmini
Loudspeakers
Dull black lacquered HDF parts and tubes, capless
tube mount, screwless fullrange mount.
Alternatively, with transparent acrylic glass tubes.
Individual lacquering schemes upon request.
2x LXsub2 Woofers
U-frame woofers, round baffle, dull black lacquered finish
1x PowerBox 6pro NCore ....
"All in one" solution.
- The PowerBox 6 pro NCore is a preamp with
volume control, a 6-ch DSP with 6ch-DAC, feeding 6 NCore
amplification channel (power
amplifier) in one slim but massive powder-coated aluminum top with
brushed stainless steel front plate.
- Digital inputs: RCA, optical, XLR, AES/EBU, USB
- Analogue inputs: Two pairs of true balanced
analogue inputs (RCA-XLR converter cables available)
- Optimized, fully balanced internal system
layout, allowing shortest signal traces, minimizing losses and artifacts.
- Filter programming for LXMINI; LXmini+2 or
LXstudio, LX521.4: Includes
remote volume control.
2x Speaker Y-cable .... €178
“1-click” SpeakOn, Y-cable between
PowerBox 6pro NCore and LXminis, 2x 2,5m
“1-click” SpeakOn, Y-cable between PowerBox 6pro NCore and Woofers, 2x 2,5m
Worldwide
shipping in 4 parcels: e.g. EU xx€ / US&CAN xx€ / World
xxx€, plus €45 insurance
EU residents add 19% VAT
Includes License/plan fee to www.linkwitzlab.com
Contact: Dr. Frank Brenner,
info@LINKWITZ.store
Plans/License is required to purchase kits and
assembled systems. |
Terms
& Conditions |
Send proof of Plans/License ownership to <plans@LINKWITZ.store>,
if already bought.
|
|
LXmini, LXmini w/Subs, Orion4d turnkey systems.
|
|
