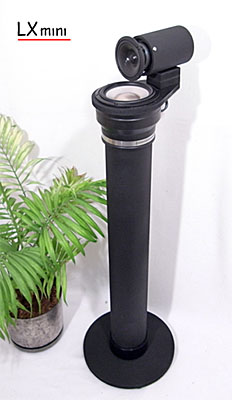

LXmini

The LXmini was designed to render sound recordings with clarity, neutrality and with detailed, 3D-like imaging, when properly set up. The speakers will reveal what is in a recording, but never add unpleasantness. You will get lost in the music and have a big smile on your face, guaranteed!

The LXmini is a 2-way loudspeaker, which can be built DIY from a Kit for around $800, including miniDSP 2x4HD equalizer/crossover. Additionally, 4 power amplifiers in the 50 W to 200 W range are needed. The speaker's frequency range extends from 45 Hz to 20 kHz. The horizontal and vertical off-axis frequency response, which is heard via the room, is spectrally neutral. Thus, listening off-axis merely changes the viewing angle to the phantom acoustic scene rendered by the seemingly absent loudspeakers.

Physics limits the maximum sound level output from a 5 inch woofer below 150 Hz. A gradual, 12 dB/octave low end roll-off provides satisfactory bass extension below 50 Hz. For LXmini+2 I added separate subwoofers for bass extension to 25 Hz. If you plan to upgrade in the future from LXmini to LXmini+2, then use the miniDSP 4x10HD for LXmini.   ----   SL - 8/16

AT1804 Power Amplifiers (4x 180W/ch) .... $1450
AT524NC Power Amplifiers (4x 200W/ch) .... $2295
AT6012 Power Amplifiers (12x 60W/ch) .... $1950

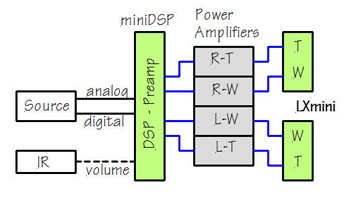

Alternatively provide four power amplifiers (4x 50W/ch minimum & identical voltage gain for each channel, <0.03% dist.)
The Emotiva A-800 8-channel amplifier could be a low cost, satisfactory performance solution for LXmini, or LXmini+2, or LXstudio applications.

CA residents add 9% Sales Tax

Take a look at a Digital Stereo Sound System example
Check out your system and hearing with a Phantom Image Test

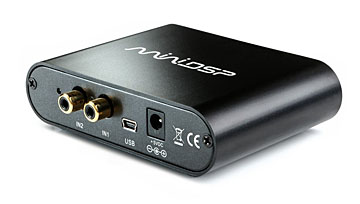

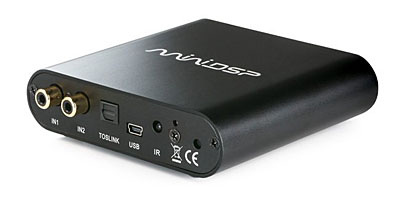

miniDSP 2x4 HD .... $205
miniDSP 2x4 HD1 plug-in / 96kHz processing .... $10
2-in analog, 2-in digital, 4-out analog, 2V, remote volume

miniDSP 4x10 HD .... $499
miniDSP 4x10 plug-in / 96kHz processing .... $10
2-in analog, 2-in digital, 8-out analog, 2V, local knob and remote volume

miniDSP USBStreamer B .... $105
USB input to Toslink optical output

Contact: Adam Johnson

Plans/License is required to purchase kits and assembled systems.  | Terms & Conditions |

Kits with lacquered tubes or with transparent acrylic glass tubes available as upgrade ....
Individual lacquering schemes upon request

Worldwide shipping: ca.  EU 20€ / US&CAN 58€ / World 78€

EU residents add 19% VAT

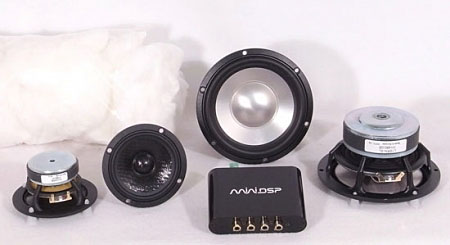

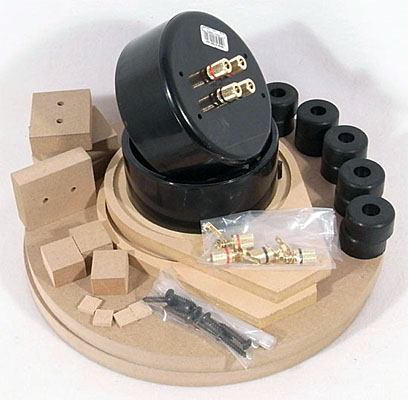

• 4 SEAS drivers
• Precision cut tubes, predrilled
• CNC'ed HDF parts in dull black (high density wooden material,
  without the downsides of MDF like soaking edges, etc)
• Screwless fullrange driver mount, no visible screws on upper tube
• Capless lower tube mount
• Screwless upper tube support
• 2 Speakon 4-way plugs “1-click”
• Internal cables
• Rubber couplers
• Damping material

screwless fullrange mounting device

capless tube  mounting

elegant SpeakOn terminal on rear side

hidden cables

Kit does not contain: electronic crossover/amp/amp-cables, paint, glue, plans/license from www.linkwitzlab.com..

Contact: Dr. Frank Brenner, info@LINKWITZ.store

Plans/License is required to purchase kits and assembled systems.  | Terms & Conditions |
Send proof of Plans/License ownership to <plans@LINKWITZ.store>

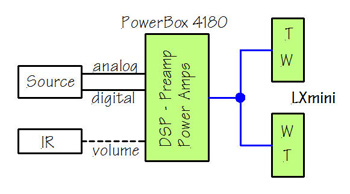

PowerBox 4180 .... €1890
Everything between your CD-player and LXmini in one slim case.
PowerBox 4180 includes high-end 6-ch Hypex DSP, preamp and 4x UcD180 power amps
IR remote receiver for volume control

Two woofer signal outputs (ch 5 & 6) allow external amplification for LX dipole woofers of LXmini+2 or LXstudio

or

NEW

ASP-based, fully integrated  PowerBox 6pro precision analog:

ASP and 6x NCore amplifier channels, rumble filter. For LXmini, LXmini+2, LXstudio

          Contact: Dr. Frank Brenner, info@LINKWITZ.store

Plans/License is required to purchase kits and assembled systems.  | Terms & Conditions |
Send proof of Plans/License ownership to <plans@LINKWITZ.store>, if already bought.

LXmini Loudspeaker System

Loudspeakers / DSP / Pre-amplifier / 4 Power-amplifiers

NEW

ASP-based, fully integrated  PowerBox 6pro precision analog:

ASP and 6x NCore amplifier channels, rumble filter. For LXmini, LXmini+2, LXstudio

The System contains:

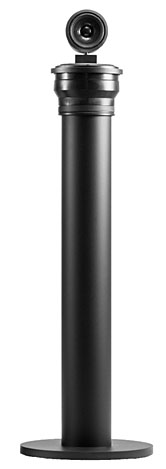

Assembled & tested LXmini Loudspeakers
Dull black lacquered HDF parts and tubes, capless tube mount, screwless fullrange mount.
Alternatively, with transparent acrylic glass tubes. Individual lacquering schemes upon request.

PowerBox 4180
Everything between your CD-player and LXmini in one slim case.
PowerBox 4180 includes high-end Hypex DSP, preamp and 4x UcD180 power amps.
IR-remote receiver for volume control. Upgrade path to other LX speakers possible.

Speaker Y-cable
Between PowerBox 4180 and LXmini
One Y-cable, 2x 2,5m, with three "1-click” SpeakOn connectors, 4x 2,5mm² conductors

2x PowerBox input cable
Analog input cable/adapter pair, RCA-to-XLR.

Worldwide shipping: e.g. EU 29€ / US&CAN 85€ / World 109€, plus €15 shipping insurance

EU residents add 19% VAT
Includes License/plan fee to www.linkwitzlab.com

Contact: Dr. Frank Brenner, info@LINKWITZ.store

Plans/License is required to purchase kits and assembled systems.  | Terms & Conditions |
Send proof of Plans/License ownership to <plans@LINKWITZ.store>, if already bought.

https://LXspeakerfactory.com/

LXmini, LXmini w/Subs, Orion4d turnkey systems.
