LXstudio
|
The LXstudio was
designed to render sound recordings with clarity, neutrality and with
detailed, 3D-like imaging, when properly set up. The speakers will
reveal what is in a recording, but never add unpleasantness.
The LXstudio is 3-way loudspeaker that combines the
LXmini with two LXsub4 dipole subwoofers, which have 10 dB higher output capability
than can be obtained from the LXmini+2 configuration. A 10 dB increase is
perceptually significant due to the ear's very nonlinear hearing
sensitivity to the lowest frequencies. With an LR2 crossover at a low 60 Hz the woofers can be placed against the side
walls of a room and the LXmini used as near-field monitors. Path length
differences to the listener can be compensated for in the DSP unit. Dipole
woofers have the advantage of less room mode excitation, which matters even in a
highly damped recording/mixing studio.

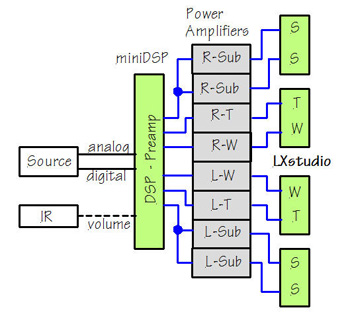

The LXstudio can
be built DIY from a Kit for around $2400, including a miniDSP 4x10HD equalizer/crossover.
Additionally, 6 power
amplifiers in the 50 W to 200 W range are needed. The
frequency range extends from 25 Hz to 20 kHz. The horizontal and vertical
off-axis frequency response, which is heard via the room, is spectrally neutral.
Thus, listening off-axis merely changes the viewing angle to the phantom
acoustic scene rendered by the seemingly absent loudspeakers.
The LXstudio was designed for a mixing
studio application (symphonic music), where the conventional large box monitor
loudspeakers gave uneven response, especially at low frequencies, despite the
studio being highly damped and relatively large.
The LXstudio performs sonically like the
LX521.4, and comes close to the full-range dipole's ultimate refinement of sound
presentation. ---- SL - 8/16
|
LXstudio Construction
Plans/License
and ATI Amplifiers
from
www.linkwitzlab.com
|

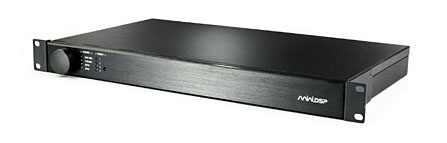

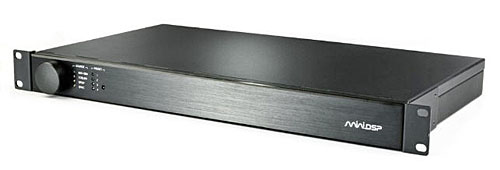

miniDSP 4x10 HD .... $499
miniDSP 4x10 plug-in / 96kHz processing .... $10
2-in analog, 2-in digital, 8-out analog, 2V, local knob and remote
volume
|
LXstudio Kit .... $2118

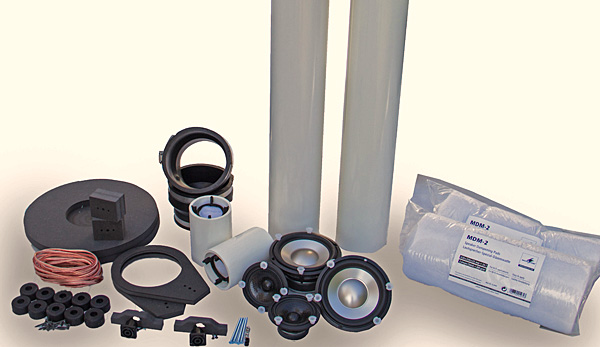

The LXstudio Kit includes: LXmini 2-Woofers, 2-Fullrange drivers,
miniDSP 4x10HD, LXmini wood parts and related items, stuffing, but no
pipes and rubber couplers.

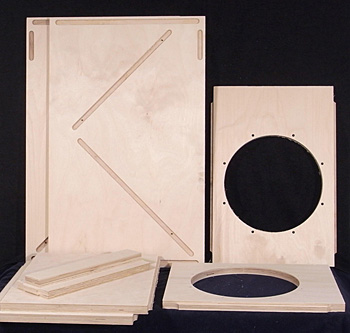

LXsub 4-Woofers, two V-frame cabinet wood parts
Contact: Adam Johnson
Plans/License is required to purchase
kits and assembled systems. |
Terms
& Conditions |
|
LXstudio Kit

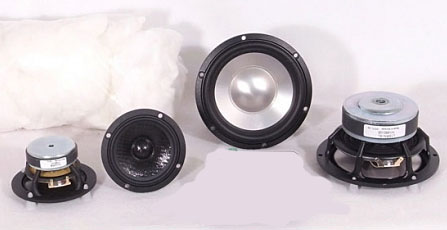

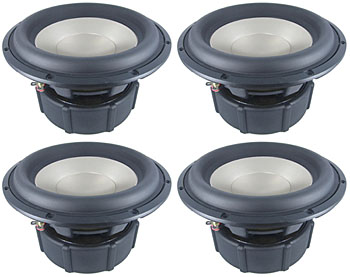

- 8 SEAS drivers
- Precision cut tubes, predrilled
- CNCed HDF parts in dull black (high density wooden material,
without the downsides of MDF like soaking edges, etc)
- Screwless FR driver mount, no visible screws on upper tube
- Capless lower tube mount
- Screwless upper tube support
- 2 Speakon 4-way plugs 1-click
- Internal cables
- Rubber couplers
- Damping material
- CNC precision milled parts from best quality birch plywood

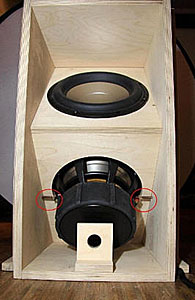

- V-frame woofers with hidden cable canals in sidepanels
