LXmini+2 & LXstudio Supplies
LX521.4



LXmini+2 & LXstudio Supplies



miniDSP 4x10HD in a box

A Digital Signal Processor is used to generate the appropriate woofer/midrange and tweeter drive signals for the power amplifiers, which are connected to the LXmini and the woofer drive signals for the dipole woofers of the LXstudio.
A Configuration File is provided with the LXstudio Construction Plans, which needs to be loaded via USB from a computer into the DSP unit.

The miniDSP 4x10HD is ready made with both analog and digital inputs and has volume control. The unit can be trained to recognize Oppo/Sony/Philips IR remote controls. It thus also replaces the preamplifier. But the DSP lacks an indication of volume level. You need to purchase:
1 x  miniDSP 4x10HD
1 x  4x10 plug-in firmware to structure the DSP for XO/EQ applications


Rear of miniDSP 4x10HD

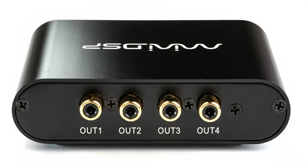

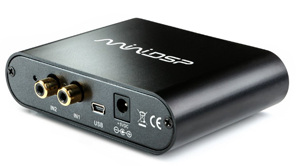

miniDSP 2x4 in a box

The miniDSP 2x4 has analog inputs only and lacks volume control. A single miniDSP 2x4 can be used for the LXmini and configured with the 2way Advanced plug-in.
Two units, one for left channel and one for right channel, are used for the LXmini+2. In that case you need the 4way Advanced plug-in to configure each unit. Configuration files are part of the LXsub documentation.






ATI Power Amplifiers

For many years I have been using ATI power amplifiers. In their product line the 12-channel AT6012 power amplifier is well suited to the LXstudio.  Each driver would have its own 60 W stereo amplifier, which can provide as much peak current or peak voltage as I would ever want in my 100 m3 listening room at The Sea Ranch.

The AT6012 is rated at 60 W per channel into 8 ohm FTC full bandwidth output power, with all 12 channels driven simultaneously. The power supply has high current reserve and a 2000 VA transformer. A pair of LXstudio speakers utilizes 8 amplifiers, which leaves 4 amplifiers for any future use, for example the LX521.4, which would take 10 amplifiers. A separate amplifier channel is allocated to each of the 10" dipole woofer drivers to obtain output capability that is commensurate with the midrange, yet minimizes bottoming and the risk of mechanical damage to the woofers, or having to reduce the speaker's low frequency extension. At very high sound levels the amplifiers clip first, which gives a clearly audible warning to turn down the volume.

The AT6012 exhibits good low power intermodulation distortion performance as seen in the graphs above. It is primarily 3rd order at 1 W in response to equal amplitude input signals at 1 kHz and 5.5 kHz driving an 8 ohm resistor. Harmonic distortion products are always of lower amplitude than intermodulation products. Unlike for many Class A/B amplifiers the distortion does not increase as power goes down. A 100 mW output level is not unrealistic. Early transistor radios had 50 mW output stages and made quite a bit of noise.

The AT1806 is a six-channel power amplifier rated at 180 W per channel. It can drive the LXstudio, if the two 10" drivers in each woofer baffle are connected in parallel to one amplifier. The parallel drivers present a low 2 ohm impedance to the power amplifier around 100 Hz. The power amplifier driving this load must be capable of at least 200 W into 4 ohm.  The AT1806 is capable of producing higher bass output volume from the LXstudio than the AT6012 and handle extreme loudness peaks. The DSP crossover/equalizer requires no modification for its use.
But, the higher power has the potential to bottom out and damage the woofers below 40 Hz and to overheat or stress LXmini woofer/midrange and tweeter with high level test or transient signals. I never had a failure with program material even at extreme volume levels.

The intermodulation distortion performance of the AT1806 at low power levels is exemplary.

The AT1202 is a two-channel power amplifier rated at 120 W per channel. It would be needed to drive left and right LXmini tweeters, if the  AT1806 powers each dipole woofer driver individually and also the LXmini woofer/midrange drivers. The AT1202 is a little safer for the LXmini tweeter than the AT1806. In any case caution is advised with such high power amplifier setup.

The intermodulation distortion performance of the AT1202 at low power levels is very good.

Note that my power description is for peak voltage equivalent power. A 2 Vpeak sinewave at 1 kHz and a 2 Vpeak sinewave at 5.5 kHz superimpose and fluctuate at a 4.5 kHz rate as seen on an oscilloscope. The fluctuation has 4 Vpeak amplitude, which I call equivalent to "1 W" for the conventional single frequency sinusoid of 4 Vpeak or 2.83 Vrms across 8 ohm. Similarly the "100 mW" description is for 1.26 Vpeak of the superimposed sinusoids. The actual dissipated powers are 500 mW and 50 mW into 8 ohm.
Harmonic distortion products are below 0.01% for the three amplifiers measured. But musical signals are rarely single sinusoids. Intermodulation distortions are always higher than harmonic distortions and their spectral distribution is in my opinion a better differentiator between amplifiers than a single harmonic distortion number.

ATI making an amplifier -- ATI sales story





Other Power Amplifiers

A wide range of power amplifiers can be used for the LXstudio. The primary requirement is that they all have the same voltage gain, otherwise you need to adjust the gain defined by the LXstudio configuration file for the miniDSP 4x10HD. I have heard good things from a trusted source about the Outlaw 7075 7-channel amplifier, which measures similar to the AT6012.  Here are examples for which I have some measurements.

amp-parasound-a51.jpg (72933 bytes) amp-Pass-proto.jpg (78739 bytes) amp-pluto-90mW.jpg (79342 bytes) amp-pluto-470mW.jpg (73141 bytes) amp-UPA500-100mW.jpg (79478 bytes) amp-UPA500-470mW.jpg (75159 bytes) amp-miniX-100mW.jpg (74360 bytes) amp-miniX-480mW.jpg (76218 bytes)
Parasound A51 Pass Labs proto Pluto LM3886 Pluto LM3886 Emotiva UPA-500 Emotiva UPA-500 Emotiva Mini-X Emotiva Mini-X
Outlaw 7075
Hypex UcD180

Internals of Outlaw 7075 and Dave Reite's UcD180 based 8-channel DIY power amplifier:





Drivers, Wood Flat-packs & configured DSP

Madisound, the distributor of SEAS drivers in the US, offers a complete LXstudio/LXmini Driver Kits of woofer, midrange and tweeter drivers.
Madisound offers a NC-machined flat-pack of wooden parts for DIY assembly of the baffles.
Contact Adam Johnson.

www.MagicLX521.com in Germany offers a complete CNC machined wood flat-pack and parts kit, including all drivers, for building the LXstudio. Different wood finishes are available. They also offer >50% assembled cabinets with drivers mounted and an assembled and tested DSP+amplifier PowerBox. They ship world-wide.
Contact Frank Brenner after having studied the www.MagicLX521.com website for your needs.

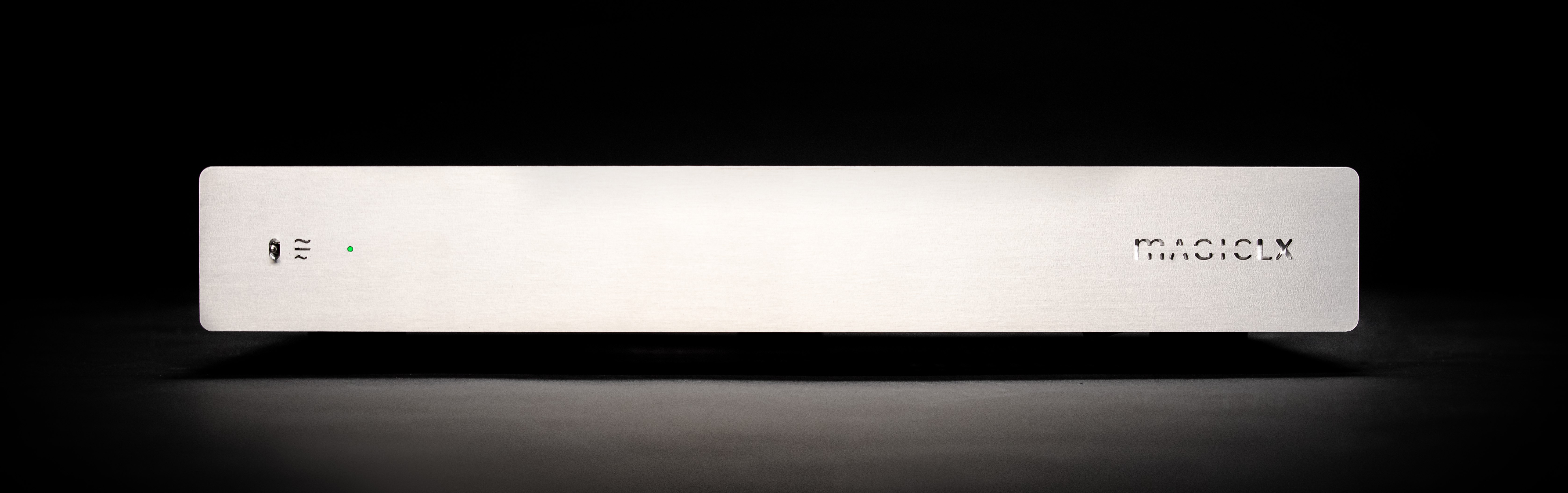

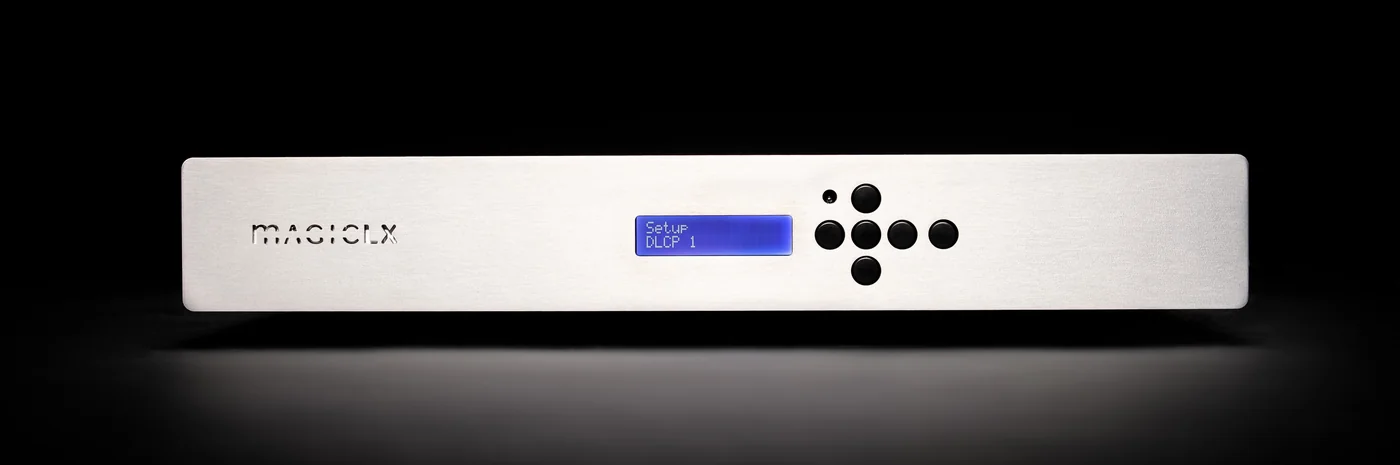

PowerBox 4180 & PowerBox 4400 pro configurations for LXmini, LXstudio and LX521 Turnkey Systems or Kits and a Price List.

In the UK contact Jerry Bloomfield at Falcon Acoustics Ltd for an LXsudio Kit.

Buyers of cabinet kits or PowerBox must own LXstudio & LXmini Construction Plans ($160).
See below for ordering, shipment cost and payment.



Shipment

  1. LXstudio and LXmini Construction Plans are sent from LINKWITZ LAB as PDF via email.
  2. Power amplifiers are shipped directly from the ATI factory.  Inquire about shipment cost to your address by sending me an email.



Payment options

You can pay with credit card over the Internet by using PayPal. For amplifier orders add a 3% payment fee (4% international) to the total cost of amplifiers and shipping. Send payment to  sl@linkwitzlab.com  via PayPal.

Alternatively you can purchase and send me a Postal Money Order, International Money Order, Western Union or Thomas Cook Money Order, or a Bank (cashier's) Check drawn in $USA currency and made out to Siegfried Linkwitz. I will wait with shipment against a personal check from a US bank until my bank has cleared it. A direct transfer of money from your bank to my bank account is not feasible due to unpredictable additional fees.

Send your payment to:

Siegfried Linkwitz
15 Prospect Lane
Corte Madera, CA 94925
USA
sl@linkwitzlab.com (for PayPal)



Ordering information

Send an e-mail message with the subject "LXstudio order" to tell me the details of your order and to provide me with shipping information.
Copy the example below into an e-mail message to sl@linkwitzlab.com or slinkwitz@gmail.com and edit the underlined text .
(Drag your mouse over the text to highlight it, then COPY and PASTE into your e-mail message)



Shipping Label for amplifier orders:

John-Alexander Smith
345 Kensington Street
Apartment #54
New York, NY 10019
USA


Ordered items:

(1) - LXmini Construction Plans PDF ($105):   1
(2) - LXsub Construction Plans PDF  ($55):  1

Total    $160.00

California residents add 9% Sales Tax to the Total

Send Construction Plans as PDF to:  yourname@emailprovider.com.

Order in the amount of:  $160.00 was sent on 27 April 2016 to sl@linkwitzlab.com at PayPal

*********************************************************************************************************

Shipment cost of Power Amplifiers:
Send me your exact address to determine shipment cost. (Typically $90 US, $280 for Europe and 220VAC version)

 Ordered items:

AT6012 Power Amplifiers (12x 60W/ch) .... $1950
AT1806
Power Amplifier (6x 180W/ch) .... $1850
AT526NC Power Amplifier (6x 200W/ch) .... $2895
AT528NC Power Amplifier (8x 200W/ch) .... $3495
Alternatively provide six power amplifiers (6x 50W/ch minimum & identical voltage gain for each channel, <0.03% dist.)



Subtotal    $0.00

California residents add 9% Sales Tax to the Total

Shipment total    $0.00

Total order    $0.00

PayPal fees for the Total order of amplifiers (3% US, 4% international)   $0.00

Order in the amount of:  $0.00 was sent on 5 May 2015 to sl@linkwitzlab.com at PayPal

Note: All material is copyrighted and for the personal, non-commercial use by the person who bought it from LINKWITZ LAB. It may not be passed on in any form for use by others. | Terms & Conditions |

Comments:  Anything you want to tell me







***************************************************************************************************************************************************

Visit to hear the LXmini, LXstudio or LX521.4



Send me an email to make an appointment for listening, for talk or consultation about the LXmini, LXstudio or LX521. The first hour is free. A second hour costs you a Construction Plans PDF. Bring 3 examples of your favorite music.
I live 8 miles north of San Francisco's Golden Gate Bridge in Corte Madera, California. - Have fun

I do not consult via email or phone.

**************************************************************************************************************************************************
