LX - Loudspeaker Store

LXmini  --  LXmini+2  --  LXstudio  --  LX521.4







LXmini System from www.magicLX521.com

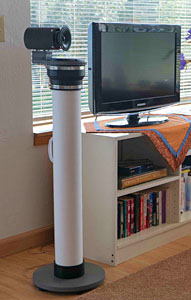

LXmini



The LXmini was designed to render sound recordings with clarity, neutrality and with detailed, 3D-like imaging, when properly set up. The speakers will reveal what is in a recording, but never add unpleasantness. You will get lost in the music and have a big smile on your face, guaranteed!

The LXmini is a 2-way loudspeaker, which can be built DIY from a Kit for around $800, including miniDSP 2x4HD equalizer/crossover. Additionally, 4 power amplifiers in the 50 W to 200 W range are needed. The speaker's frequency range extends from 45 Hz to 20 kHz. The horizontal and vertical off-axis frequency response, which is heard via the room, is spectrally neutral. Thus, listening off-axis merely changes the viewing angle to the phantom acoustic scene rendered by the seemingly absent loudspeakers.

Physics limits the maximum sound level output from a 5 inch woofer below 150 Hz. A gradual, 12 dB/octave low end roll-off provides satisfactory bass extension below 50 Hz. For LXmini+2 I added separate subwoofers for bass extension to 25 Hz. If you plan to upgrade in the future from LXmini to LXmini+2, then use the miniDSP 4x10HD for LXmini.   ----   SL - 8/16



LXmini Loudspeaker System .... €3490

Loudspeakers / DSP / Pre-amplifier / 4 Power-amplifiers











The System contains:

Assembled & tested LXmini Loudspeakers
Dull black lacquered HDF parts and tubes, capless tube mount, screwless fullrange mount.
Alternatively, with transparent acrylic glass tubes. Individual lacquering schemes upon request.

PowerBox 4180
Everything between your CD-player and LXmini in one slim case.
PowerBox 4180 includes high-end Hypex DSP, preamp and 4x UcD180 power amps.
IR-remote receiver for volume control. Upgrade path to other LX speakers possible.

Speaker Y-cable
Between PowerBox 4180 and LXmini
One Y-cable,
2x 2,5m, with three "1-click” SpeakOn connectors, 4x 2,5mm² conductors

2x PowerBox input cable
Analog input cable/adapter pair, RCA-to-XLR.

Worldwide shipping: e.g. EU 29€ / US&CAN 85€ / World 109€, plus €15 shipping insurance

EU residents add 19% VAT
Includes License/plan fee to www.linkwitzlab.com

Contact: Dr. Frank Brenner, info@magicLX521.com

Plans/License is required to purchase kits and assembled systems.  | Terms & Conditions |
Send proof of Plans/License ownership to <plans@magicLX521.com>, if already bought.







LXmini+2 System from www.magicLX521.com

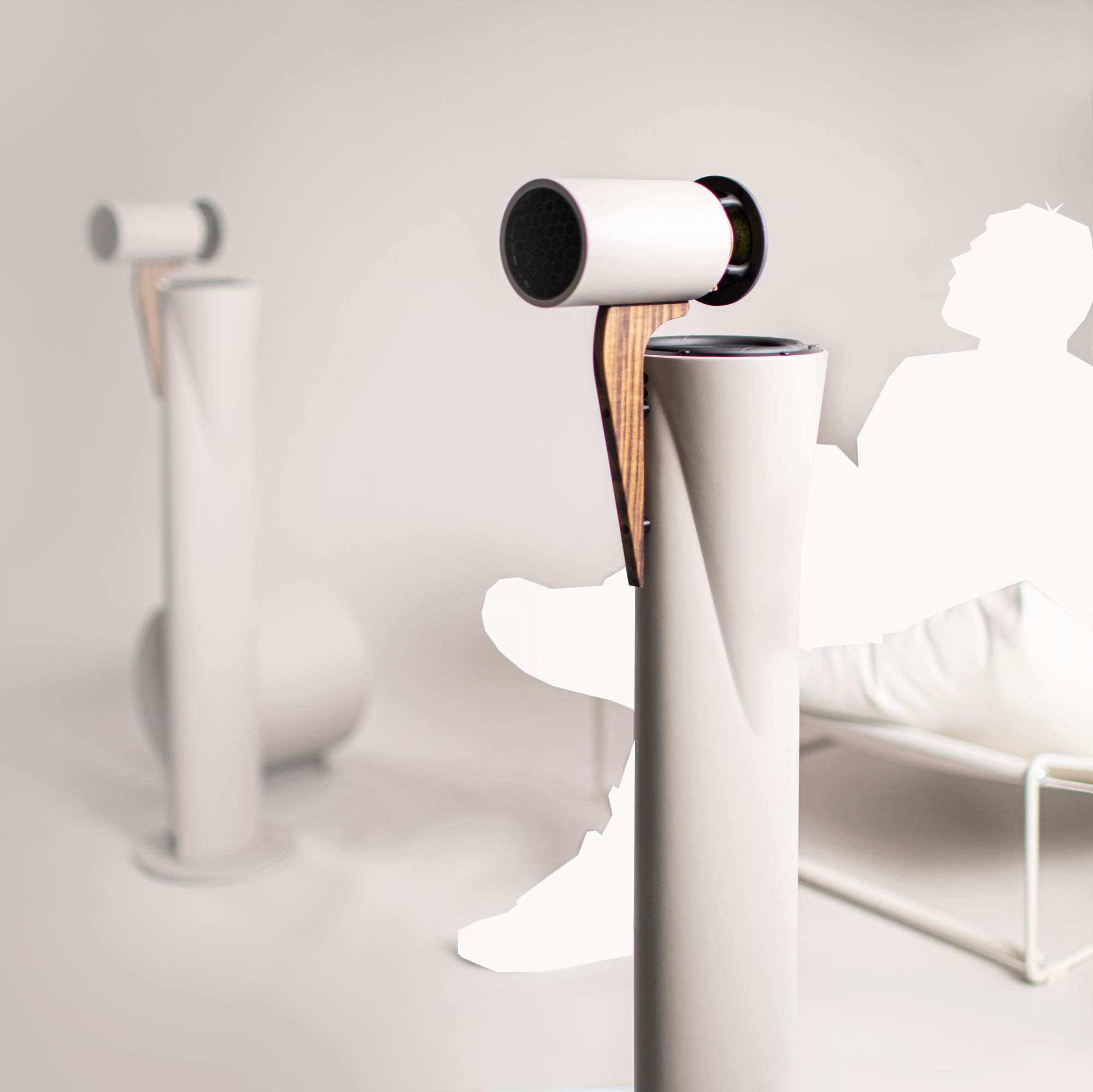

LXmini+2

The LXmini+2 was designed to render sound recordings with clarity, neutrality and with detailed, 3D-like imaging, when properly set up. The speakers will reveal what is in a recording, but never add unpleasantness. You will get lost in the music and have a big smile on your face, guaranteed!

The LXmini+2 is a 3-way loudspeaker, which can be built DIY from a Kit for around $1800, including a miniDSP 4x10HD equalizer/crossover. Additionally, 6 power amplifiers in the 50 W to 200 W range are needed.  The speaker's frequency range extends from 25 Hz to 20 kHz. The horizontal and vertical off-axis frequency response, which is heard via the room, is spectrally neutral. Thus, listening off-axis merely changes the viewing angle to the phantom acoustic scene rendered by the seemingly absent loudspeakers.

With an LR2 crossover at a low 60 Hz the two subwoofers can be placed next to or against the side walls of a room. Path length differences to the listener can be compensated for in the DSP unit. Dipole woofers can also be angled to reduce room mode excitation and thus preserve articulation in bass sounds.

The LXmini+2 performs sonically like the LX521.4 and comes close to the full-range dipole's ultimate refinement of sound presentation, though at 10 dB reduced volume levels in the bass.

(An upgrade from LXmini to LXmini+2 requires addition of two LXsub2 subwoofers, a stereo power amplifier (2x 50 W min), and a miniDSP 4x10HD)  ----   SL - 8/16



LXmini+2 Loudspeaker System .... €4990

Loudspeakers / DSP / Pre-amplifier / 4 Power-amplifiers





The System contains:

2x LXmini Loudspeakers
Dull black lacquered HDF parts and tubes, capless tube mount, screwless fullrange mount.
Alternatively, with transparent acrylic glass tubes. Individual lacquering schemes upon request.

2x LXsub2 Woofers
U-frame woofers, round baffle, dull black lacquered finish

PowerBox 4180
Includes high-end Hypex DSP, preamp and 4x power amps from Hypex.
IR-remote receiver for volume control.
PowerBox 4180 drives the LXmini part and delivers the processed woofer signal for the external woofer
woofer amplifier: PowerAmp 2180 (2x 180W)

PowerAmp 2180
Inputs: 2x XLR balanced analog.  Output: 1-click SpeakOn 8ch plug, 2x UcD180OEM

2x XLR cables
to interconnect PowerBox and PowerAmp

2x Speaker Y-cable
“1-click” SpeakOn, Y-cable between PowerBox 4180 and LXminis, 2x 5m
“1-click” SpeakOn, Y-cable between PowerAmp 2180 and Woofers, 2x 5m



NEW since 2016:
PowerBox 6pro NCore
Master for LXmini+2 or LXstudio (€2490)
and with an additional PowerBox 6pro NCore Follower for LX521.4 (+€2490)
See Burning Amp 2016 and Open House 2017 and PB 6pro PDF



Worldwide shipping in  4 parcels: e.g. EU xx€ / US&CAN xx€ / World xxx€, plus €45 insurance

EU residents add 19% VAT
Includes License/plan fee to www.linkwitzlab.com

Contact: Dr. Frank Brenner, info@magicLX521.com

Plans/License is required to purchase kits and assembled systems.  | Terms & Conditions |
Send proof of Plans/License ownership to <plans@magicLX521.com>, if already bought.







LXstudio System from www.magicLX521.com

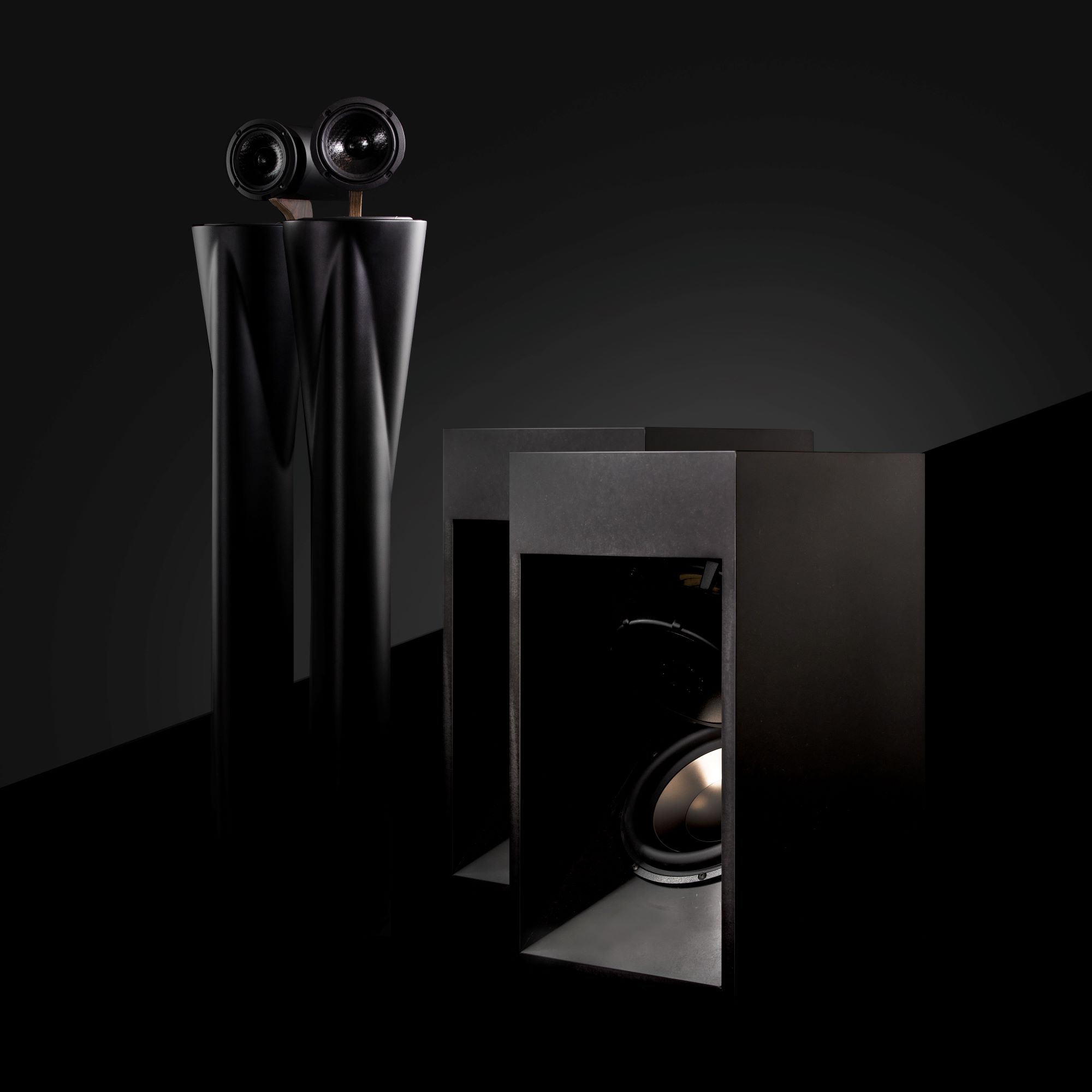

LXstudio

The LXstudio was designed to render sound recordings with clarity, neutrality and with detailed, 3D-like imaging, when properly set up. The speakers will reveal what is in a recording, but never add unpleasantness.

The LXstudio is 3-way loudspeaker that combines the LXmini with two LXsub4 dipole subwoofers, which have 10 dB higher output capability than can be obtained from the LXmini+2 configuration. A 10 dB increase is perceptually significant due to the ear's very nonlinear hearing sensitivity to the lowest frequencies. With an LR2 crossover at a low 60 Hz the woofers can be placed against the side walls of a room and the LXmini used as near-field monitors. Path length differences to the listener can be compensated for in the DSP unit. Dipole woofers have the advantage of less room mode excitation, which matters even in a highly damped recording/mixing studio.

The LXstudio can be built DIY from a Kit for around $2400, including a miniDSP 4x10HD equalizer/crossover. Additionally, 6 power amplifiers in the 50 W to 200 W range are needed. The frequency range extends from 25 Hz to 20 kHz. The horizontal and vertical off-axis frequency response, which is heard via the room, is spectrally neutral. Thus, listening off-axis merely changes the viewing angle to the phantom acoustic scene rendered by the seemingly absent loudspeakers.

The LXstudio was designed for a mixing studio application (symphonic music), where the conventional large box monitor loudspeakers gave uneven response, especially at low frequencies, despite the studio being highly damped and relatively large.

The LXstudio performs sonically like the LX521.4, and comes close to the full-range dipole's ultimate refinement of sound presentation.  ----  SL - 8/16



LXstudio Loudspeaker System .... €6490

Loudspeakers / DSP / Pre-amplifier / 6 Power-amplifiers







The System consists of:

2x LXmini Loudspeakers and 2x LXsub4 Woofers

  • Dull black lacquered HDF parts and tubes, alternatively with transparent acrylic glass tubes.
  • Individual lacquering schemes on request.
  • V-frame woofers black MDF dull clear finish. Hidden cabling in side panels.

PowerBox 4180
Includes high-end DSP, preamp and 4 power amps from Hypex
PowerBox 4180 drives the LXmini part and delivers the processed woofer signal for the external woofer amplifier: PowerAmp 4182pro (4x 180W)

PowerAmp 4182pro
Inputs: 4x XLR balanced analog.  Output: 1-click SpeakOn 8ch plug, 4x 180W

2x XLR Y-cable
Interconnect PowerBox 4180 and PowerAmp 4182pro

3x Speaker Y-cable
“1-click” SpeakOn, Y-cable between PowerBox 4180 and LXminis, 2x 5,0m
“1-click” SpeakOn, Y-cable between PowerAmp 4182pro and Woofers, 2x 5,0m



NEW since 2016:
PowerBox 6pro NCore
Master for LXmini+2 or LXstudio (€2490)
and with an additional PowerBox 6pro NCore Follower for LX521.4 (+€2490)
See Burning Amp 2016 and Open House 2017 and PB 6pro PDF



Worldwide shipping in four parcels: e.g. EU 96€ / US&CAN 319€ / world 399€ / Insurance 45€
Due to weight restrictions per parcel, upper woofer drivers ship in a separate parcel and must be inserted by customer with 8 bolts
& nuts.
Inquire about alternative shipping as one 120kg airfreight pallet of fully assembled (all woofer drivers inserted) and tested loudspeakers: ca €800 to €1000 from Germany to the US.

Includes License/plan fee to www.linkwitzlab.com
Does not include: electronic crossover/amp/amp-cables.
EU residents add 19% VAT



Contact: Dr. Frank Brenner, info@magicLX521.com

Plans/License is required to purchase kits and assembled systems.  | Terms & Conditions |
Send proof of Plans/License ownership to <plans@magicLX521.com>, if already bought.







LX521.4 System from www.magicLX521.com

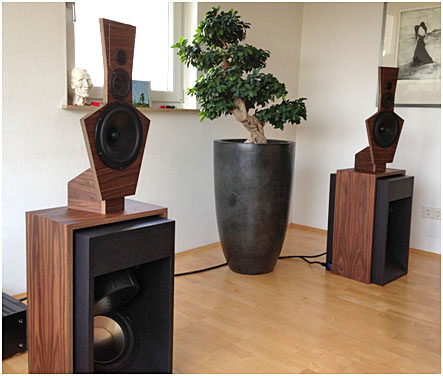

LX521.4

The LX521.4 exemplifies the best of what I have observed and learned in 50 years of experimentation about rendering stereo recordings in domestic living spaces. I love music. Life's circumstances prevented me from learning to play an instrument, but I make up for it by enjoying the creations of great composers and the art of musicians. I have designed speakers first of all for myself and free of commercial pressures. With the LX521.4 I have arrived at a level of performance, which makes me search no further. Instead I gratefully enjoy what I can hear. I excuse the recording/mixing engineer for his or her imprint and marginal acoustic scene capture, as long as the music still comes through. As hired engineers they work within a set of imposed limitations, one of which is the typical monitor loudspeaker.

The LX521.4 is a 4-way loudspeaker, designed as full-range dipole, for flat on-axis and off-axis response in the horizontal plane and frontal hemisphere. The speakers need breathing room of at least 1 m to the nearest large reflecting surfaces and a room with a minimum floor size of 25 sqm.

The LX521.4 can be built DIY from a Kit for around $3300, including a miniDSP 4x10HD equalizer/crossover. Additionally, the speaker requires between 8 to10 power amplifiers of 50 W to 200 W.

SL - 8/16



LX521.4 Loudspeaker System .... €8990

Loudspeakers / DSP / Pre-amplifier / 8 Power-amplifiers







The System consists of:

2x Loudspeakers

  • Top baffles and bridges are custom built in various precious veneer plywood types.
  • Choose your preference! Standard and popular selections are e.g. Bubinga, American Walnut, Paduk, Mahogany and Oak. Surfaces are finished by oil, or transparent lacquer (dull / silk gloss).
  • Upgrades to 3-layer massive wood types (e.g. Oak, Cherry, Walnut or Ash) or to Panzerholz possible.
  • Hidden cabling in all aspects.

2x PowerBox 4180
Everything between your CD-player and LX521 in two slim cases
LX521.4 requires one PowerBox per side, interconnected by CAT6 network cable
One PowerBox 4180 as MASTER and a PowerBox 4180 as FOLLOWER.
High-end Hypex DSP, preamp and 8x UcD180OEM power amplifiers on two 400W PSUs (Power Supply Units),
analog and digital inputs, remote volume

2x Speaker Y-cable
Between PowerBox and LX521,
Two 5m cables with three "1-click” SpeakOn connectors per cable, 8x 2,5mm² conductors



NEW since 2016:
PowerBox 6pro NCore
Master for LXmini+2 or LXstudio (€2490)
and with an additional PowerBox 6pro NCore Follower for LX521.4 (+€2490)
See Burning Amp 2016 and Open House 2017 and PB 6pro PDF



Worldwide shipping of LX system in four parcels: e.g. EU 96€ / US&CAN 319€ / World 399€ / Insurance 60€
Due to weight restrictions per parcel, upper woofer drivers ship in a separate parcel and must be inserted by customer with 8 bolts&nuts.
Inquire about alternative shipping as one 120kg airfreight pallet of fully assembled (all woofer drivers inserted) and tested loudspeakers: ca €800 to €1000 from Germany to the US.

Worldwide shipping of Electronics: e.g. EU 25€ / US&CAN 79€ / world 85€, plus 15€ insurance

Includes License/plan fee to www.linkwitzlab.com
EU residents add 19% VAT



  Mahagony

   Bubinga

   Walnut

  Walnut


3-layer massive oak, oiled      Paduck                                            Hidden cabling                     Top: black Panzerholz
                                                                                                                                                           Bridge: Makassar Ebenholz

  45 degree miters at bridge

Contact: Dr. Frank Brenner, info@magicLX521.com

Plans/License is required to purchase kits and assembled systems.  | Terms & Conditions |
Send proof of Plans/License ownership to <plans@magicLX521.com>, if already bought.
