LX - Loudspeaker Store

LXmini  --  LXmini+2  --  LXstudio  --  LX521.4





LX521.4

The LX521.4 exemplifies the best of what I have observed and learned in 50 years of experimentation about rendering stereo recordings in domestic living spaces. I love music. Life's circumstances prevented me from learning to play an instrument, but I make up for it by enjoying the creations of great composers and the art of musicians. I have designed speakers first of all for myself and free of commercial pressures. With the LX521.4 I have arrived at a level of performance, which makes me search no further. Instead I gratefully enjoy what I can hear. I excuse the recording/mixing engineer for his or her imprint and marginal acoustic scene capture, as long as the music still comes through. As hired engineers they work within a set of imposed limitations, one of which is the typical monitor loudspeaker.

The LX521.4 is a 4-way loudspeaker, designed as full-range dipole, for flat on-axis and off-axis response in the horizontal plane and frontal hemisphere. The speakers need breathing room of at least 1 m to the nearest large reflecting surfaces and a room with a minimum floor size of 25 sqm.

The LX521.4 can be built DIY from a Kit for around $3300, including a miniDSP 4x10HD equalizer/crossover. Additionally, the speaker requires between 8 to10 power amplifiers of 50 W to 200 W.

SL - 8/16







LX521.4 Construction Plans/License
and ATI Amplifiers from

www.linkwitzlab.com

LX521.4 Construction Plans/License .... $155
Plans/License is also required to purchase kits and assembled systems.

AT6012 Power Amplifiers (12x 60W/ch) .... $1950
2x AT1804 Power Amplifier (8x 180W/ch) .... $2900
AT1806 Power Amplifier (6x 180W/ch) .... $1850
+ AT1802 Power Amplifiers (2x 180W/ch) .... $1050
AT528NC Power Amplifier (8x 200W/ch) .... $3495
Alternatively provide ten power amplifiers (10x 50W/ch minimum & identical voltage gain for each channel, <0.03% dist.)

  Take a look at a Digital Stereo Sound System example
Check out your system and hearing with a Phantom Image Test

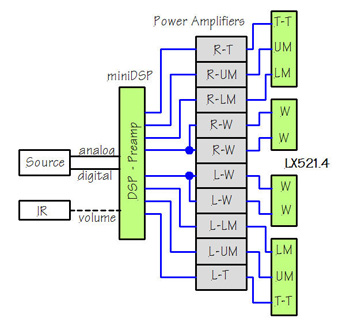

LX521.4 DSP Module from www.miniDSP.com

miniDSP 4x10 HD .... $499
miniDSP 4x10 plug-in / 96kHz processing .... $10
2-in analog, 2-in digital, 8-out analog, 2V, local knob and remote volume

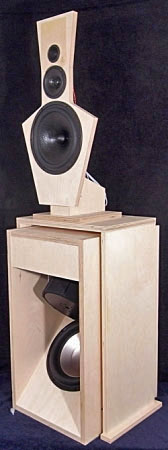

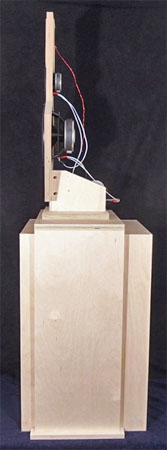

LX521 Wood Kit from www.madisound.com

Flat-pack wood parts and related items .... $580
  • (2) LX521 Flat Pack cabinets
  • (36) OX8PAN1 Phillips head wood screws – enclosure assembly
  • (20) OXSOCKET6X3_4 Hex head wood screws – mount midrange drivers to baffle
  • (32) OXTNUT10-24 Socket head cap screws – mounting woofers to V-frame enclosure
  • (8) 1.5” x .75” steel inside corner braces - for woofer bridge
  • (16) Quick Connects for woofers, lower mids and upper mids
  • (4ft) 19 awg solid copper wire for tweeters – strip coating off ends, solder to tweeter tabs

      No SEAS drivers included ($1478)



Contact: Adam Johnson

Plans/License is required to purchase kits and assembled systems.  | Terms & Conditions |

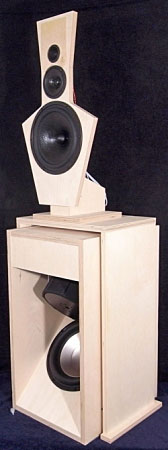

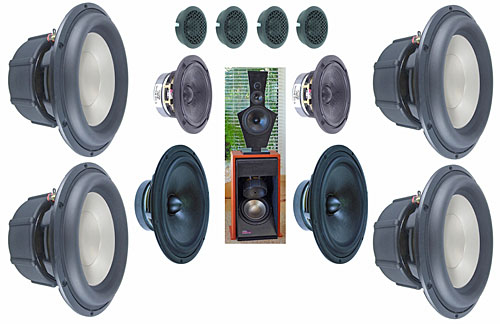

LX521.4 System Kit from www.madisound.com

LX521.4 Kit .... $2547
The LX521.4 Kit includes: 4-Woofers, 2-Lower midrange drivers, 2-Upper midrange drivers, 4-Tweeters, miniDSP 4x10HD, Flat-pack wood parts and related items ($580)
DSP with analog and digital inputs, and remote volume control. A separate preamp is not needed.
The DSP drives the 8x 150W or 10x 50W power amplifiers required for the system.





Contact: Adam Johnson

Plans/License is required to purchase kits and assembled systems.  | Terms & Conditions |

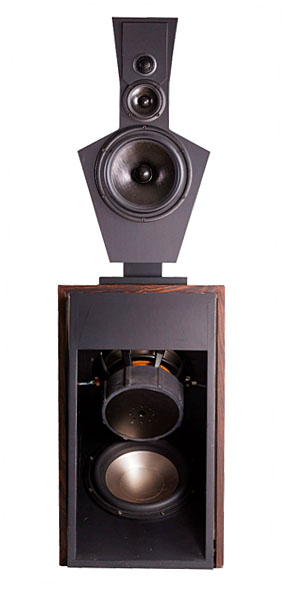

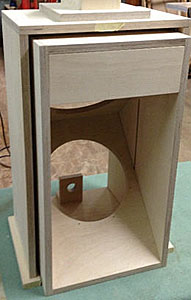

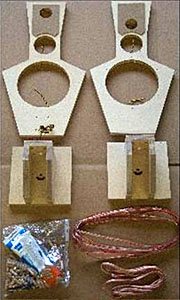

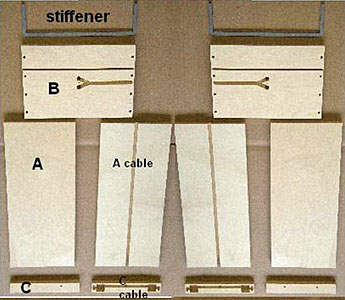

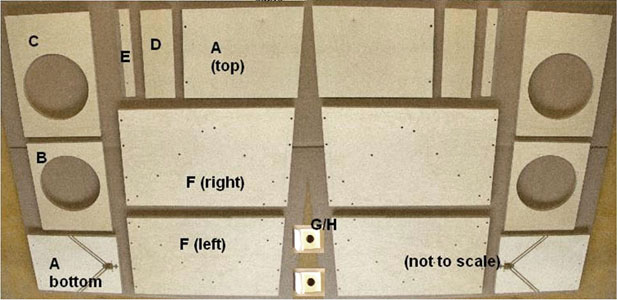

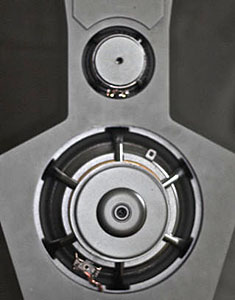

LX521 Wood Kit from www.magicLX521.com

50% pre-assembled LX521 Wood Kit .... €799

Worldwide shipping: e.g. EU 55€ / US&CAN 159€ / world 199€

EU residents add 19% VAT

Features:

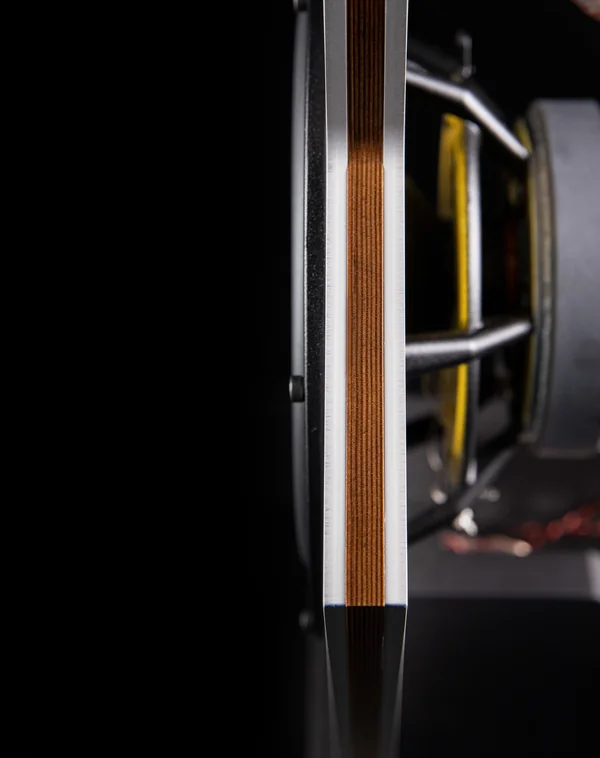

  • CNC precision milled from best quality birch plywood
  • Top baffles assembled and glued, hidden cables
  • Baffle supports assembled and glued
  • Bridges with hidden cable canals
  • Bridges with hidden stability bracket

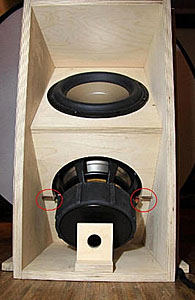

  • V-frame woofers with hidden cable canals in side panels
  • V-frame woofer with 45deg front joints
  • dowel joints avoid visible screws
  • Internal cables
  • Dowels, screws, screw clamp

Kit does not contain: electronic crossover/amp/amp-cables, paint, glue, plans/license from www.linkwitzlab.com.









Contact: Dr. Frank Brenner, info@magicLX521.com

Plans/License is required to purchase kits and assembled systems.  | Terms & Conditions |
Send proof of Plans/License ownership to <plans@magicLX521.com>







LX521.4 System Kit from www.magicLX521.com

50% pre-assembled LX521 Wood Kit, incl. 12 SEAS drivers .... €1799

Worldwide shipping: e.g. EU 96€ / US&CAN 319€ / World 399€

EU residents add 19% VAT

Features:

  • CNC precision milled from best quality birch plywood
  • Machine calibrated top baffle thickness
  • Top baffles assembled and glued, hidden cables
  • Baffle supports assembled and glued
  • Bridges with hidden cable canals
  • Bridges with hidden stability bracket
  • V-frame woofers with hidden cable canals in side panels
  • V-frame woofer with 45deg front joints
  • dowel joints avoid visible screws
  • Internal cables
  • Dowels, screws, screw clamp

Kit does not contain: paint, glue, plans/license from www.linkwitzlab.com.







Contact: Dr. Frank Brenner, info@magicLX521.com

Plans/License is required to purchase kits and assembled systems.  | Terms & Conditions |
Send proof of Plans/License ownership to <plans@magicLX521.com>.

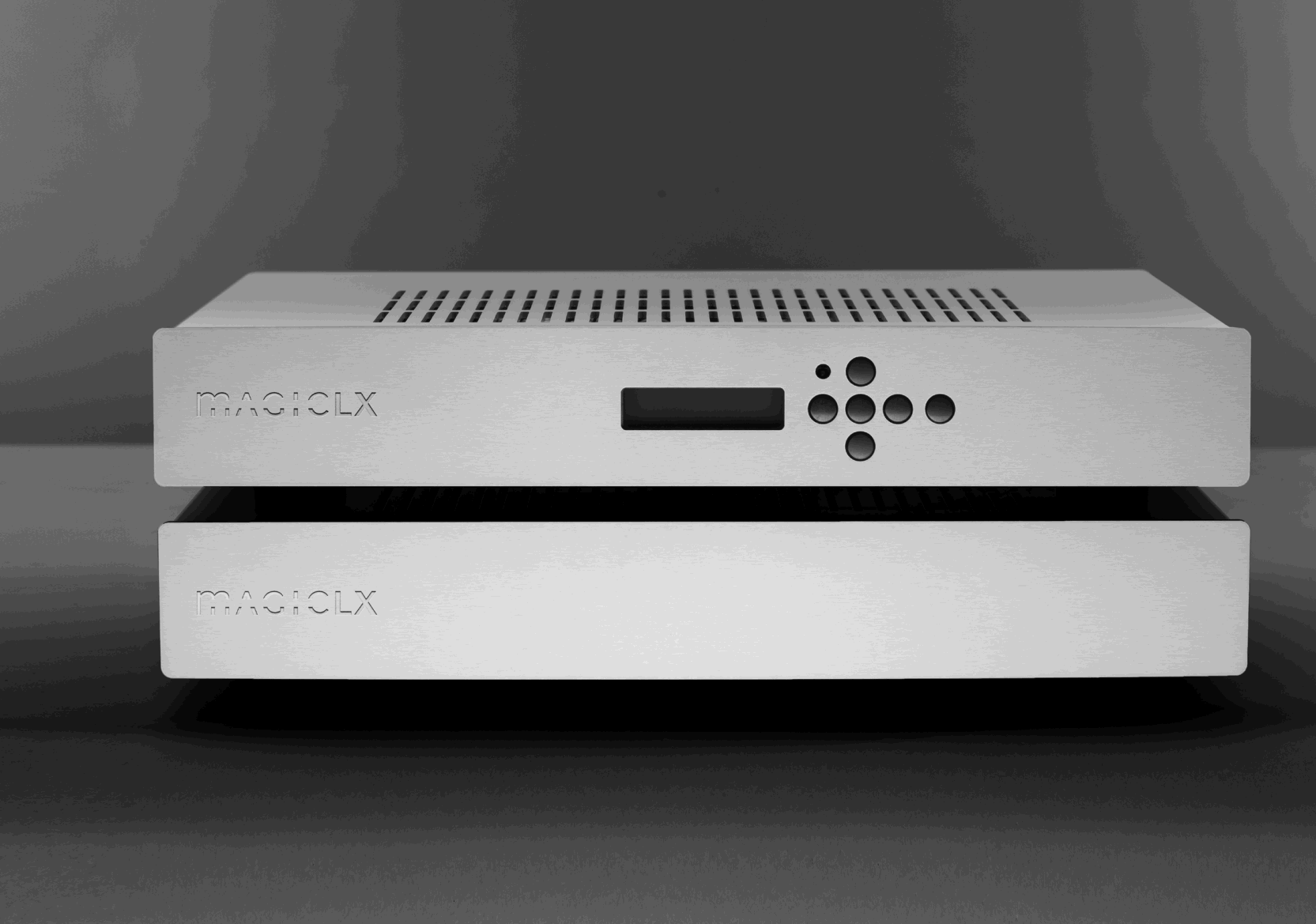

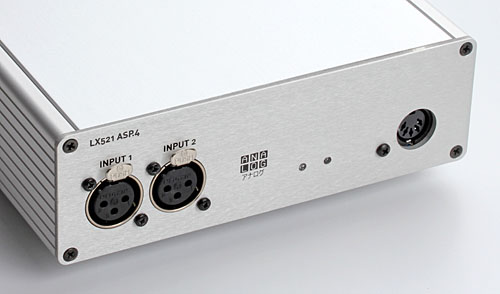

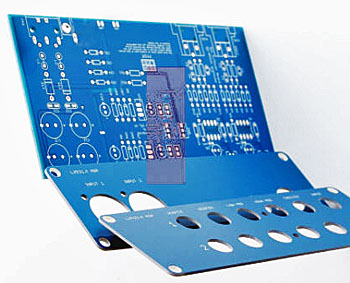

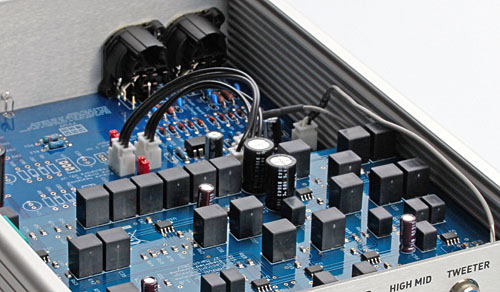

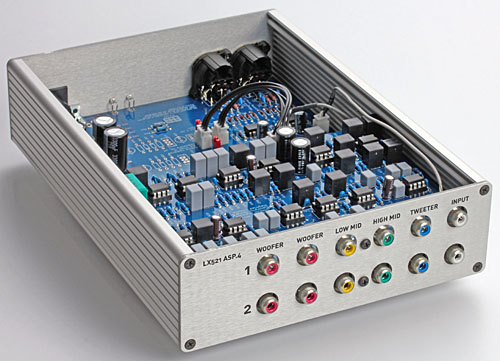

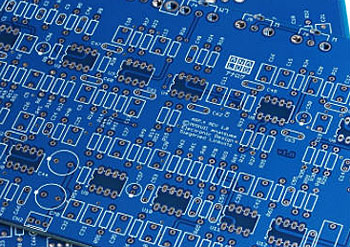

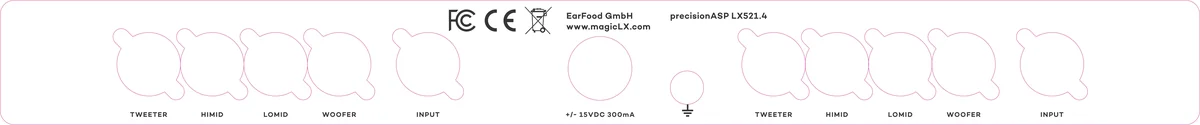

LX521.4 Electronics from www.magicLX521.com

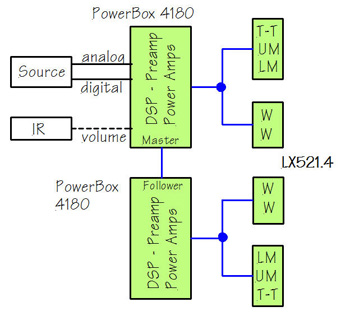

DSP / Pre-amplifier / 8 Power-amplifiers



2x PowerBox 4400pro .... €4380
Everything between your CD-player and LX521 in two slim cases
LX521.4 requires one PowerBox per side, interconnected by CAT6 network cable
PowerBox 4400pro-MASTER ... €2190, and PowerBox 4400- FOLLOWER ... €2190
High-end Hypex DSP, preamp and 8x UcD400 power amplifiers on 1200W PSUs (Power Supply Units),
analog and digital inputs, remote volume, or:

2x PowerBox 4180 .... €3780
dto. with 8x UcD180OEM on 400W PSUs.

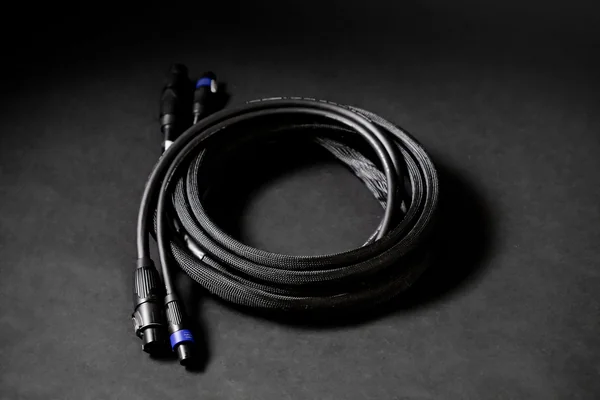

2x Speaker Y-cable .... €349
Between PowerBox 4400pro and LX521,
Two 5m cables with three "1-click” SpeakOn connectors per cable, 8x 2,5mm² conductors

Worldwide shipping: e.g. EU 25€ / US&CAN 79€ / world 85€, plus 15€ insurance

EU residents add 19% VAT

  • The PowerBox 4400pro is a preamp with volume control, a 6-ch DSP with 6ch-DAC, feeding a 4-channel power amplifier in one slim but massive powder-coated aluminum top with brushed stainless steel front plate.
  • Digital inputs: RCA, optical, XLR, AES/EBU, USB
  • Analogue inputs: Two pairs of true balanced analogue inputs (RCA-XLR converter cables available)
  • Optimized, fully balanced internal system layout, allowing shortest signal traces, minimizing losses and artifacts.

NEW since 2016:

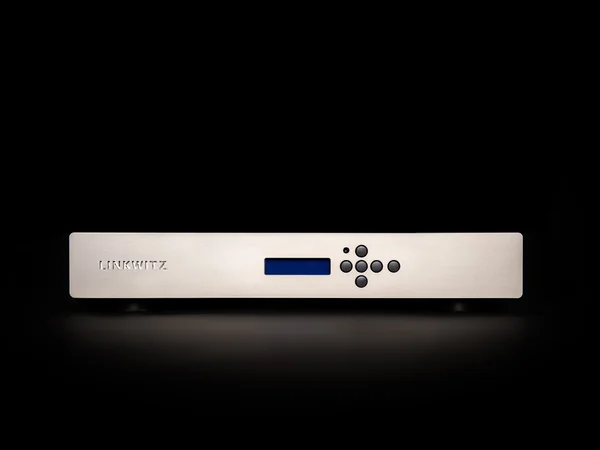

PowerBox 6pro NCore
Master for LXmini+2 or LXstudio (€2490)
and with an additional PowerBox 6pro NCore Follower for LX521.4 (+€2490)
See Burning Amp 2016 and Open House 2017 and PB 6pro PDF

Contact: Dr. Frank Brenner, info@magicLX521.com

Plans/License is required to receive pre-loaded LX DSP filters.  | Terms & Conditions |
Send proof of Plans/License ownership to <plans@magicLX521.com>, if already bought.

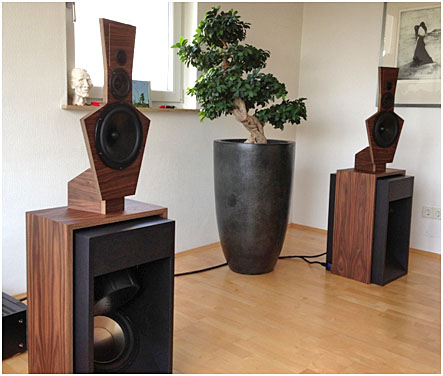

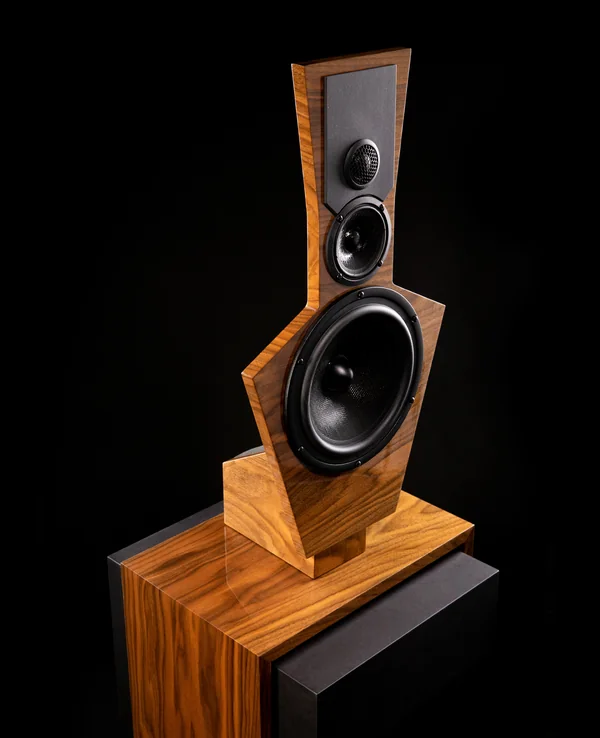

LX521.4 Turnkey System from www.magicLX521.com



LX521.4 Loudspeaker System .... €8990

Loudspeakers / DSP / Pre-amplifier / 8 Power-amplifiers







The System consists of:

2x Loudspeakers

  • Top baffles and bridges are custom built in various precious veneer plywood types.
  • Choose your preference! Standard and popular selections are e.g. Bubinga, American Walnut, Paduk, Mahogany and Oak. Surfaces are finished by oil, or transparent lacquer (dull / silk gloss).
  • Upgrades to 3-layer massive wood types (e.g. Oak, Cherry, Walnut or Ash) or to Panzerholz possible.
  • Hidden cabling in all aspects.

2x PowerBox 4180
Everything between your CD-player and LX521 in two slim cases
LX521.4 requires one PowerBox per side, interconnected by CAT6 network cable
One PowerBox 4180 as MASTER and a .PowerBox 4180 as FOLLOWER.
High-end Hypex DSP, preamp and 8x UcD180OEM power amplifiers on two 400W PSUs (Power Supply Units),
analog and digital inputs, remote volume

2x Speaker Y-cable
Between PowerBox and LX521,
Two 5m cables with three "1-click” SpeakOn connectors per cable, 8x 2,5mm² conductors



NEW since 2016:
PowerBox 6pro NCore
Master for LXmini+2 or LXstudio (€2490)
and with an additional PowerBox 6pro NCore Follower for LX521.4 (+€2490)
See Burning Amp 2016 and Open House 2017 and PB 6pro PDF



Worldwide shipping of LX system in four parcels: e.g. EU 96€ / US&CAN 319€ / World 399€ / Insurance 60€
Due to weight restrictions per parcel, upper woofer drivers ship in a separate parcel and must be inserted by customer with 8 bolts&nuts.
Inquire about alternative shipping as one 120kg airfreight pallet of fully assembled (all woofer drivers inserted) and tested loudspeakers: ca €800 to €1000 from Germany to the US.

Worldwide shipping of Electronics: e.g. EU 25€ / US&CAN 79€ / world 85€, plus 15€ insurance

Includes License/plan fee to www.linkwitzlab.com
EU residents add 19% VAT



  Mahagony

   Bubinga

   Walnut

  Walnut


3-layer massive oak, oiled      Paduck                                            Hidden cabling                     Top: black Panzerholz
                                                                                                                                                           Bridge: Makassar Ebenholz

  45 degree miters at bridge

Contact: Dr. Frank Brenner, info@magicLX521.com

Plans/License is required to purchase kits and assembled systems.  | Terms & Conditions |
Send proof of Plans/License ownership to <plans@magicLX521.com>, if already bought.
